Technical Values
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

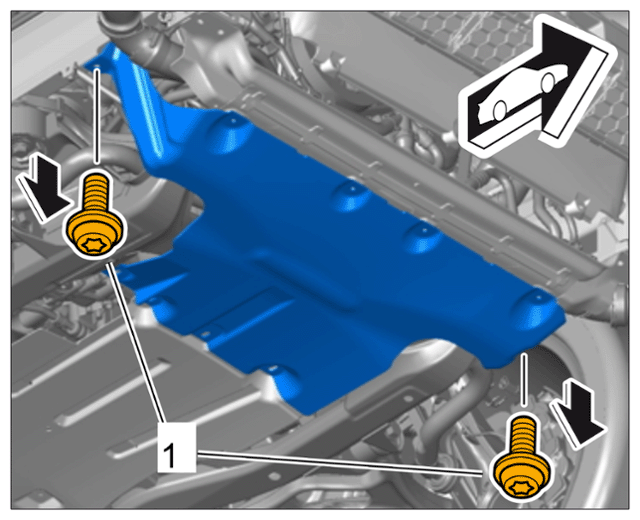

| Front section of engine guard | Side screws/Item 1 | Tightening torque | 9 (6.5 ftlb.) Nm | ||
|
Loosening side fastening screws |
|||||

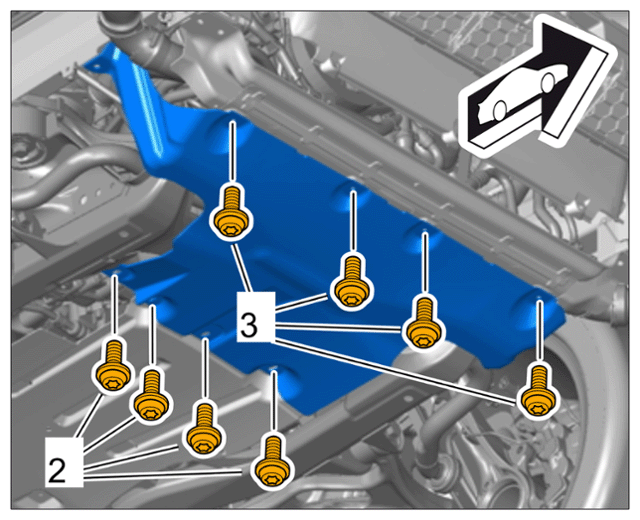

| Front section of engine guard | Rear and front screws/Item 2 and 3 | Tightening torque | 9 (6.5 ftlb.) Nm | ||
|
Loosening front fastening screws |
|||||

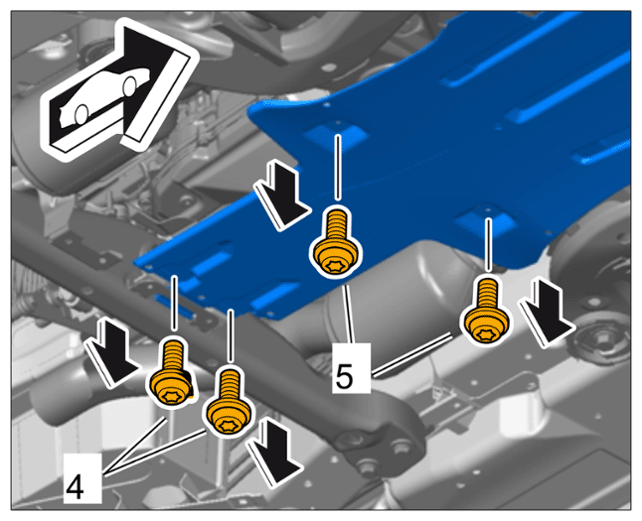

| Rear section of engine guard | Rear and front screws/Item 4 and 5 | Tightening torque | 9 (6.5 ftlb.) Nm | ||
|
Loosening rear fastening screws |
|||||
