Removing Engine Mounting

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

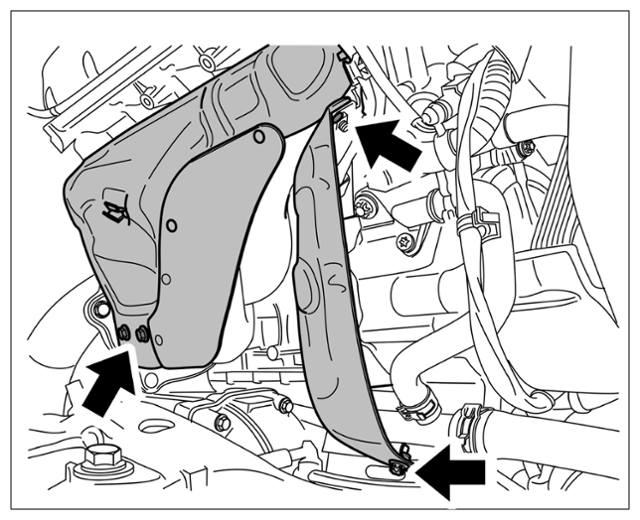

Remove the heat shield on the generator for the engine mounting at the right. To do this, unscrew two fastening screws. -right arrows-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields

Fig 1: Right Bracket For Auxiliary Units And Engine Mounting Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

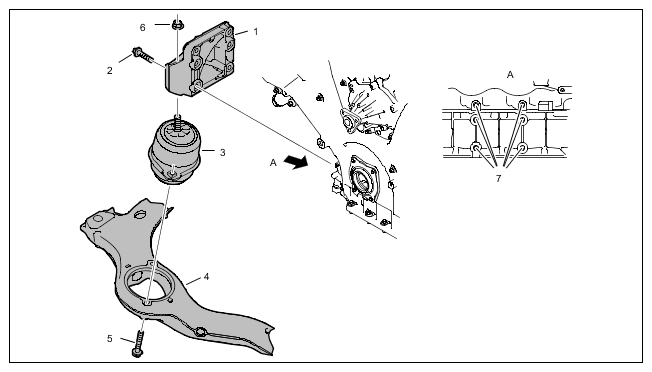

Right bracket for auxiliary units and engine mounting

1	Bracket for cylinders 1 to 4
2	Screw, M10 x 45
3	Hydraulic mount, right
4	Engine carrier
5	Screw, M10 x 65
6	Nut, M12 x 1.5
7	Bores for screws, M10 x 45
A	Installation view of engine carrier on crankcase

Fig 2: Left Bracket For Auxiliary Units And Engine Mounting Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

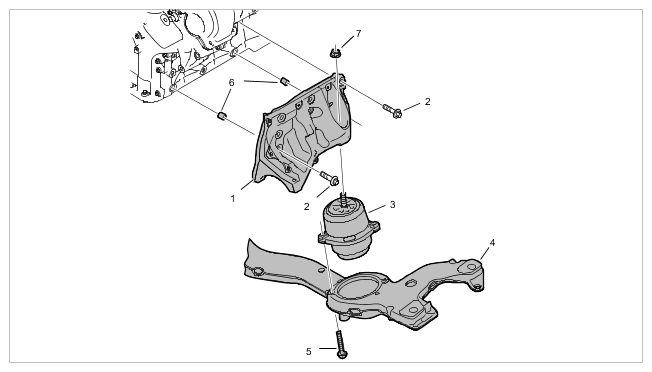

Left bracket for auxiliary units and engine mounting

1	Bracket for auxiliary units/engine mounting
2	Screw, M10 x 45
3	Hydraulic mount, left
4	Engine carrier
5	Screw, M10 x 65
6	Dowel sleeve
7	Nut, M12 x 1.5
