Engine Carrier

WARNING: This page is about a different variant/trim than selected.

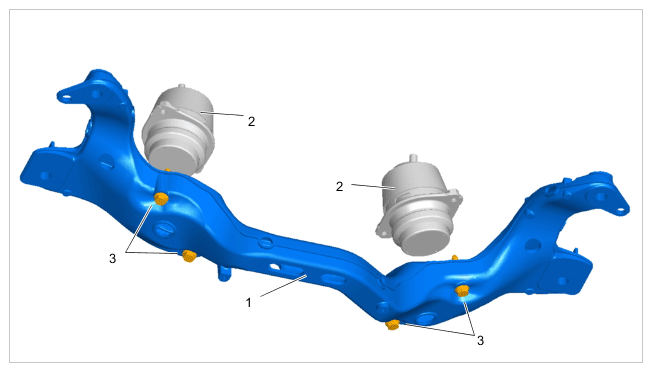

Fig 1: V8 Biturbo Engine Carrier Components Location With Torque Specification
G16307073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V8 biturbo engine carrier

1  Engine carrier
2  Engine mount
3  Screws > Tightening torque 60 Nm +/- 8 Nm
