Tools And Materials: Tools

WARNING: This page is about a different variant/trim than selected.

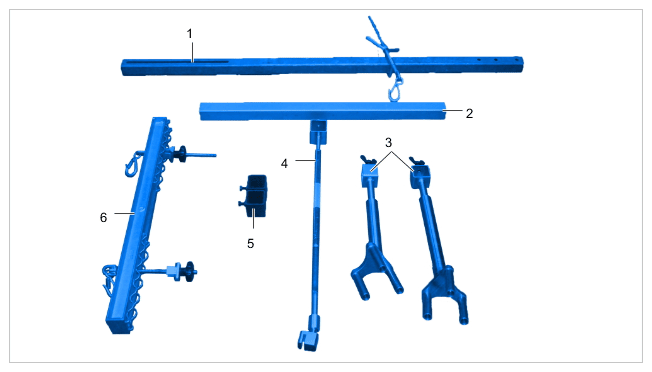

G16307027Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tools for supporting the engine on the body

  1. > 10-222A - Catching fixture
  2. > T40091/1 - Pipe
  3. > T40091/52-53 - Support in combination with head of > T40091/50-51 - support
  4. > T40093/3P - Support with > T40093/51 - adjustable foot
  5. > T40091/3 - Joiner
  6. > 3033 - Lifting tackle
