Tools And Materials

WARNING: This page is about a different variant/trim than selected.

The following tools are described in the Workshop Equipment Manual, Chapter 3.0.13 "WE 1206" (exceptions are noted).

G16306896Courtesy of PORSCHE CARS NORTH AMERICA, INC.

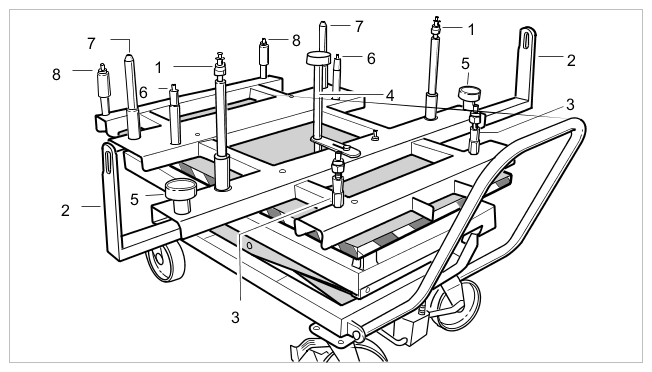

Lifting platform

  1. Assembly mandrel  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier
  2. Wheel hub holder  => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front
  3. Assembly mandrel  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier
  4. Support  => Not used here.
  5. Wishbone support  => Used in conjunction with -5-  to protect the wheel suspension and spring struts from damage.
  6. Assembly mandrel  => For mounting on the front-axle carrier at the rear. Item 3 in base carrier
  7. Assembly mandrel  => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centring roughly. Item 4 in base carrier
  8. Assembly mandrel  => For mounting on the transmission cross member. Item 5 on base carrier
G16306897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

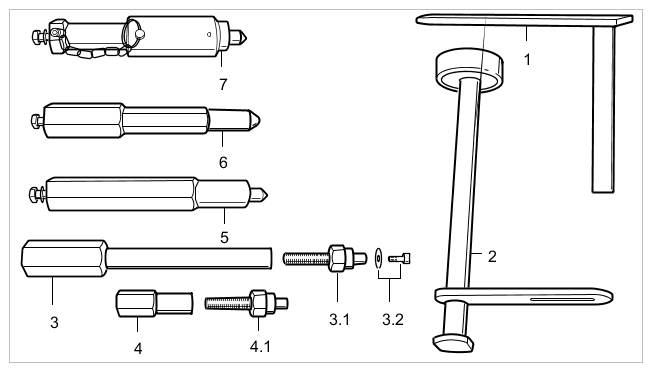

Tool overview

  1. Wheel hub holder  => Secures the spring struts to prevent them from tipping.
  2. Support  => Prevents the engine from tipping backwards. Not generally used.
  3. Lateral mounting mandrel for engine carrier  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier
    1. 3.1 Support with height adjustment  => Screwed into part 3.
    2. 3.2 Protection against tipping  => Screwed into Part 3.1. Prevents the engine from tipping forward.
  4. Front front-axle carrier mounting  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier
    1. 4.1 Support with height adjustment  => Screwed into part 4.
  5. Rear front-axle carrier mounting  => Item 3 in base carrier
  6. Mounting in the body  => Item 4 in base carrier
  7. Mounting for transmission cross member  => Item 5 in base carrier
G16306898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

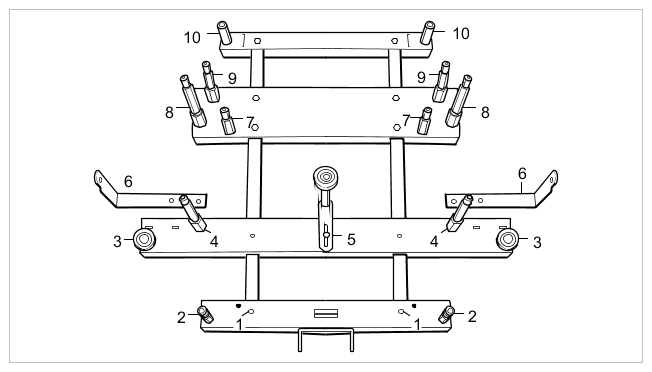

Complete structure of the base carrier with mounting mandrels

2, 5 and 8  Not used for removing engine!

  1. Screw in mounting mandrel for front-axle carrier at the front (instead of "2")
