Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Locking bridge P 9619/1  must be removed.

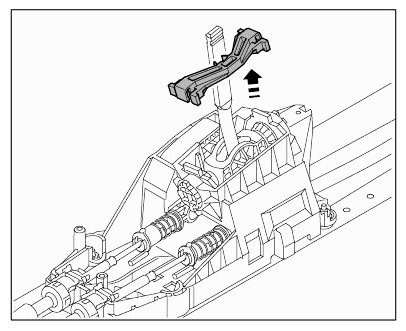

    Fig 1: Removing Locking Bridge
    G09586570Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install handbrake lever.

    → INSTALLING PARKING-BRAKE LEVER

  3. Install rear wall cover.

    → INSTALLING REAR WALL COVER

  4. Install engine compartment lid.

    → INSTALLING ENGINE COMPARTMENT LID

  5. Install shift lever knob.

    → Installing Shift Lever Knob

  6. Install Centre console.

    → INSTALLING CENTRE CONSOLE

  7. Lower the vehicle.
