Subsequent Work

  1. Install seat adjustment motor. → Installing Motor For Seat Adjustment

    Information

    Only for vehicles with adaptive sports seats.

  2. Install motor and control valve for air cushion.

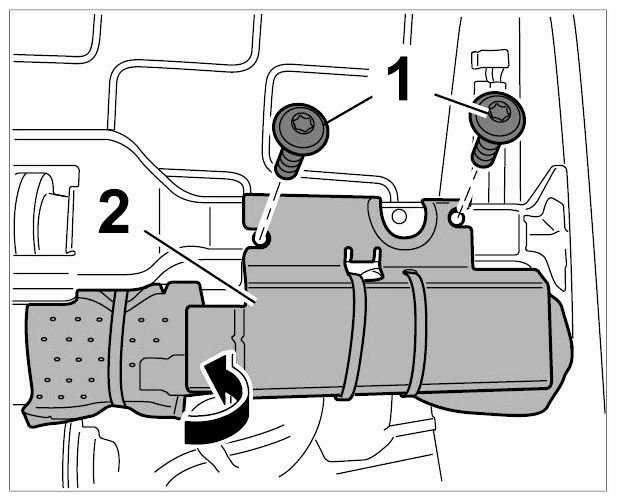

    Fig 1: Securing Holder With Compressor And Air Distribution Valve
    G09592256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Position holder -2-  with connected motor and control valve for air cushion -arrow-  .
    2. 2.2. Tighten fastening screws -1-  on the holder -2-  .
  3. Install front seat. → Installing Front Seat
