Installing Motor For Seat Adjustment

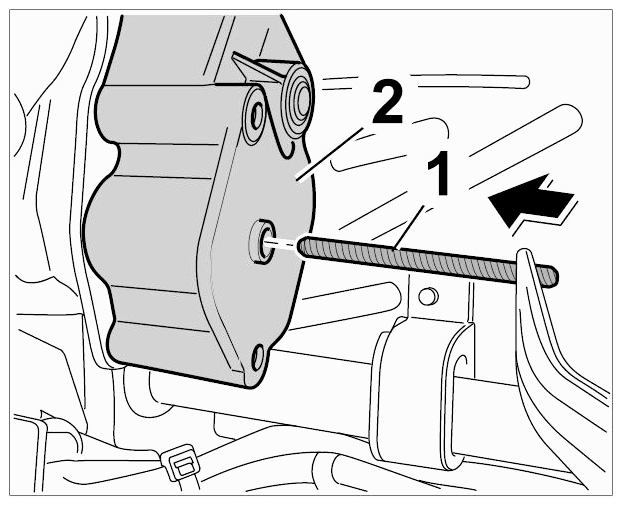

Insert the short drive shaft -1- into the gear mount -2- by twisting slightly.

Fig 1: Installing Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

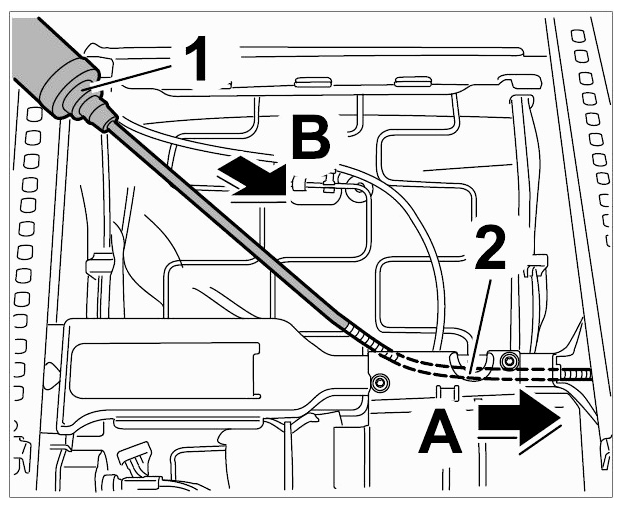

Insert the long drive shaft -2- into the gear mount -arrow A- by twisting slightly.

Fig 2: Pushing Seat Adjustment Motor Onto Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.

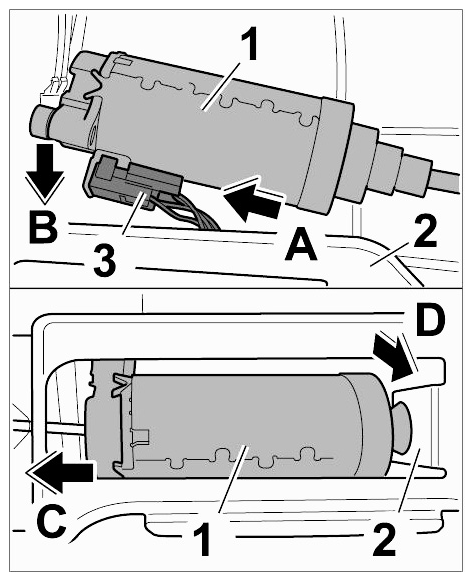

Push motor for seat adjustment -1- and sleeve onto the long drive shaft -2- by twisting slightly -arrow A- .
Attach the connector -3- to the motor for seat adjustment -1- (-arrow A- ) until it engages firmly.

Fig 3: Pressing Seat Adjustment Motor Into Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push motor for seat adjustment -1- under the support -2- (-arrow B- ).
Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.
Push motor for seat adjustment -1- onto the short drive shaft by twisting slightly -arrow C- .
Press motor for seat adjustment -1- into the support -2- at the boot -arrow D- .

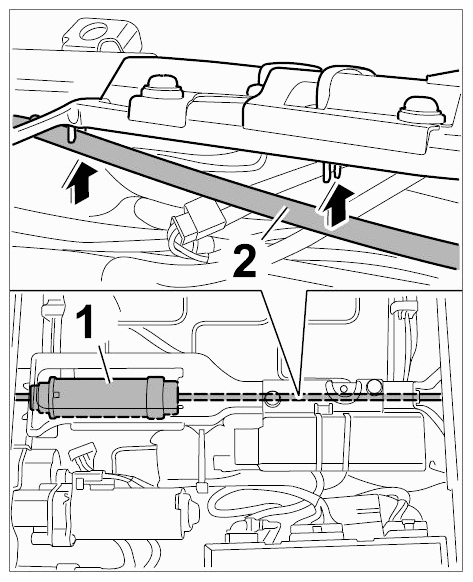

Clip in sleeve of long drive shaft -2- of seat adjustment motor -1- on the support.

Fig 4: Installing Seat Adjustment Motor Shaft Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
