Subsequent work for function module

Secure the coolant pipes in the tunnel area (holder -1- and holder 3) and install the TPM antenna -2- .

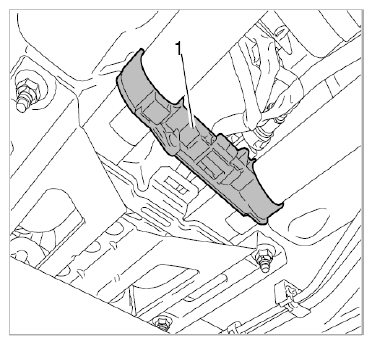

1. 1.1. Install rear coolant pipe holder -1- .

  Fig 1: Identifying Rear Coolant Pipe Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

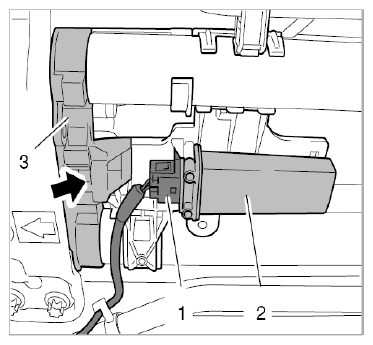

2. 1.2. Install coolant pipe holder -3- (at the front) and TPM antenna -2- .

  Fig 2: Identifying TPM Antenna And Coolant Pipe Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

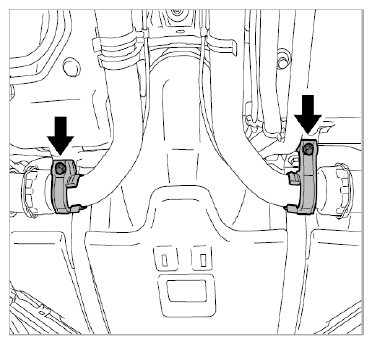

Secure front coolant pipes (M6 screws) -arrows- .

Fig 3: Locating Coolant Pipe Holders At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill the system (pressure accumulator) by leaving the engine running (for about two minutes).
Carry out a function test (lift and lower the front axle).

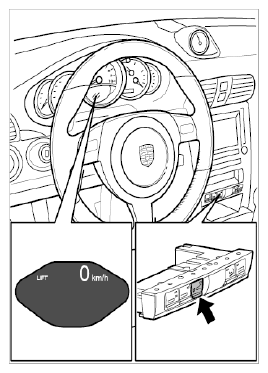

1. 3.1. Lift the front axle. To do this, actuate the switch in the centre console -arrow- as required.
  If the pressure accumulator was bled fully, it can take up to 2 minutes to reach the final vehicle height and for the message -LIFT- to appear (next to the digital speedometer) when you lift the front axle for the first time.

  Fig 4: Locating Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Lower the front axle. To do this, actuate the switch in the centre console -arrow- as required.
  The doors must be closed in order to lower the front axle.

  Do not lower the vehicle if there is an obstacle underneath it!
Install cover for front and centre underbody.
→ Installing cover for front underbody

→ Installing cover for centre underbody
