Installing Cover For Front Underbody

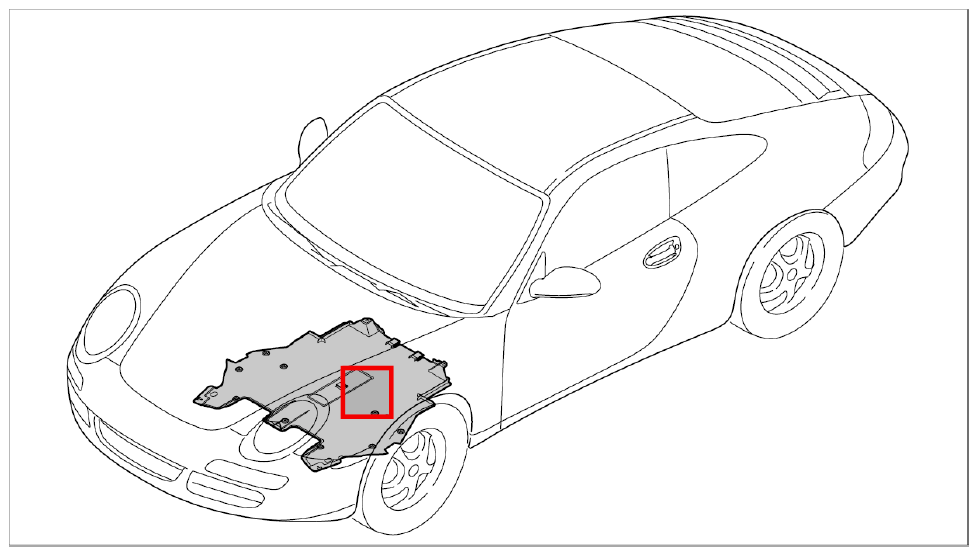

Fig 1: Overview Of Front Underbody Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for front underbody -1-  .

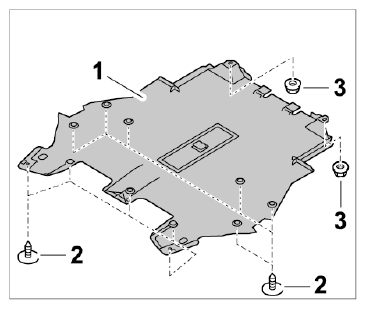

   Fig 2: Installing Cover Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screws -2-  . Tightening torque → : 1.5 ft. lb.
3. Tighten fastening nuts -3-  . Tightening torque → : 0.5 ft. lb.
