4: Sensors for ParkAssistent

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Four ultrasonic sensors are installed in the rear spoiler.

A ParkAssistent sensor together with holder consists of the following components:

[1]- Rosette
[2]- Washer
[3]- Sensor housing
[4]- Isolating ring
[5]- Sensor
[6]- Retaining spring

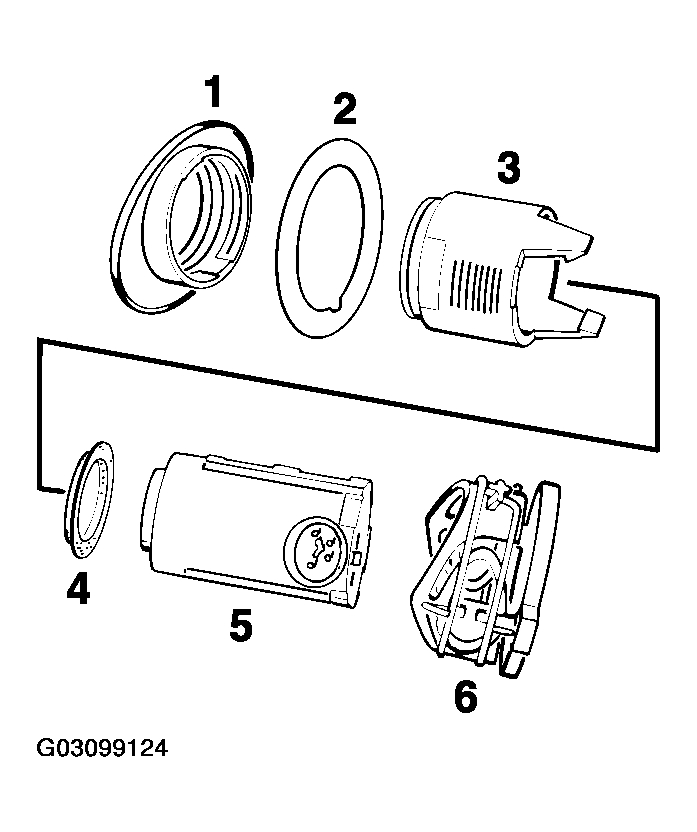

Fig 1: Exploded View Of ParkAssistent Sensor With Holder Components
Courtesy of PORSCHE OF NORTH AMERICA, INC.
