Function of the components

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

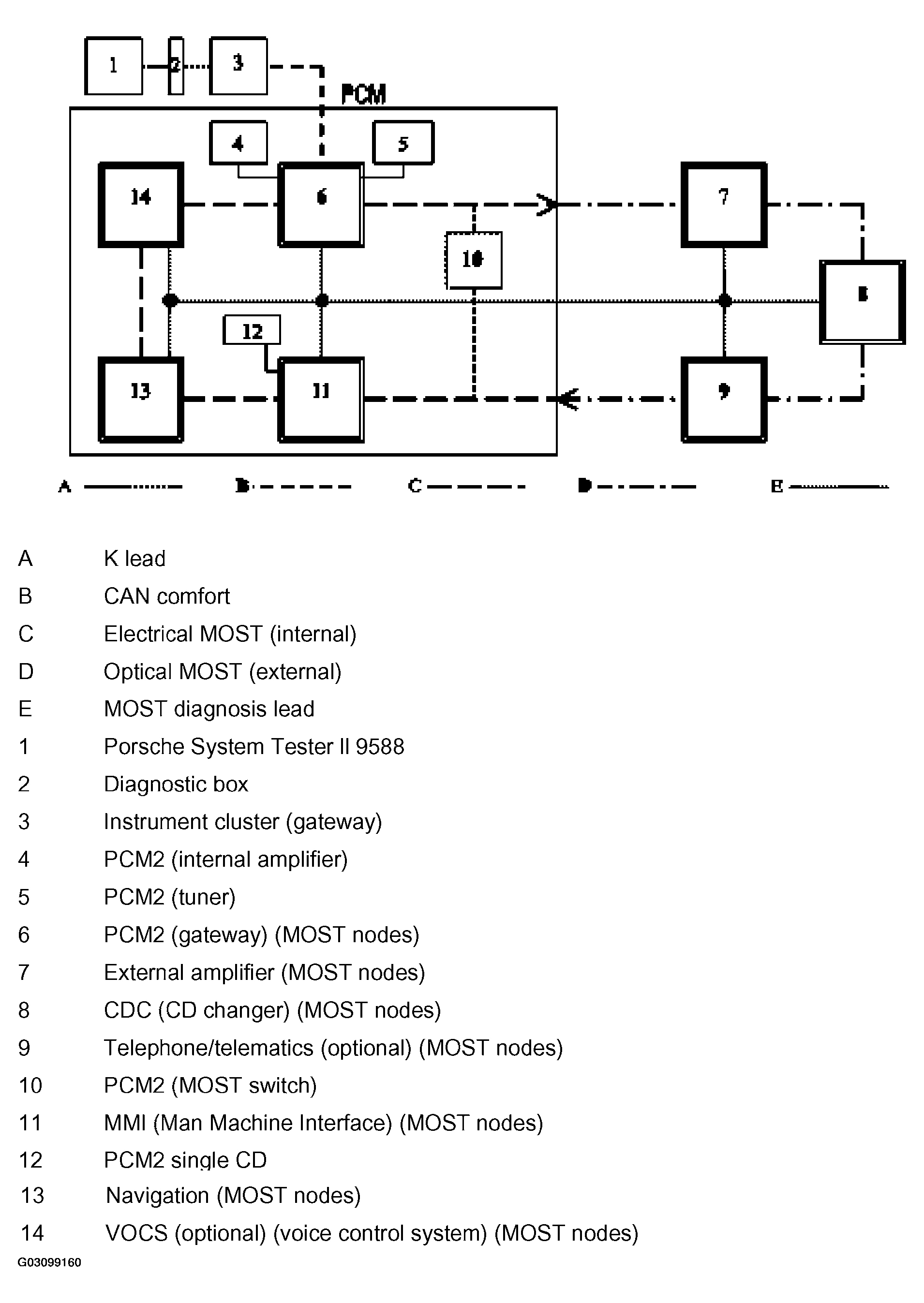

Fig 1: Identifying External Harman Amplifier Circuits

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

When the PCM2 is replaced, the coding must be performed in accordance with the connected MOST control modules.
When the Switch closed parameter is set, the switch remains closed even in existing MOST control modules. Communication is not possible.
