Function of the components

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

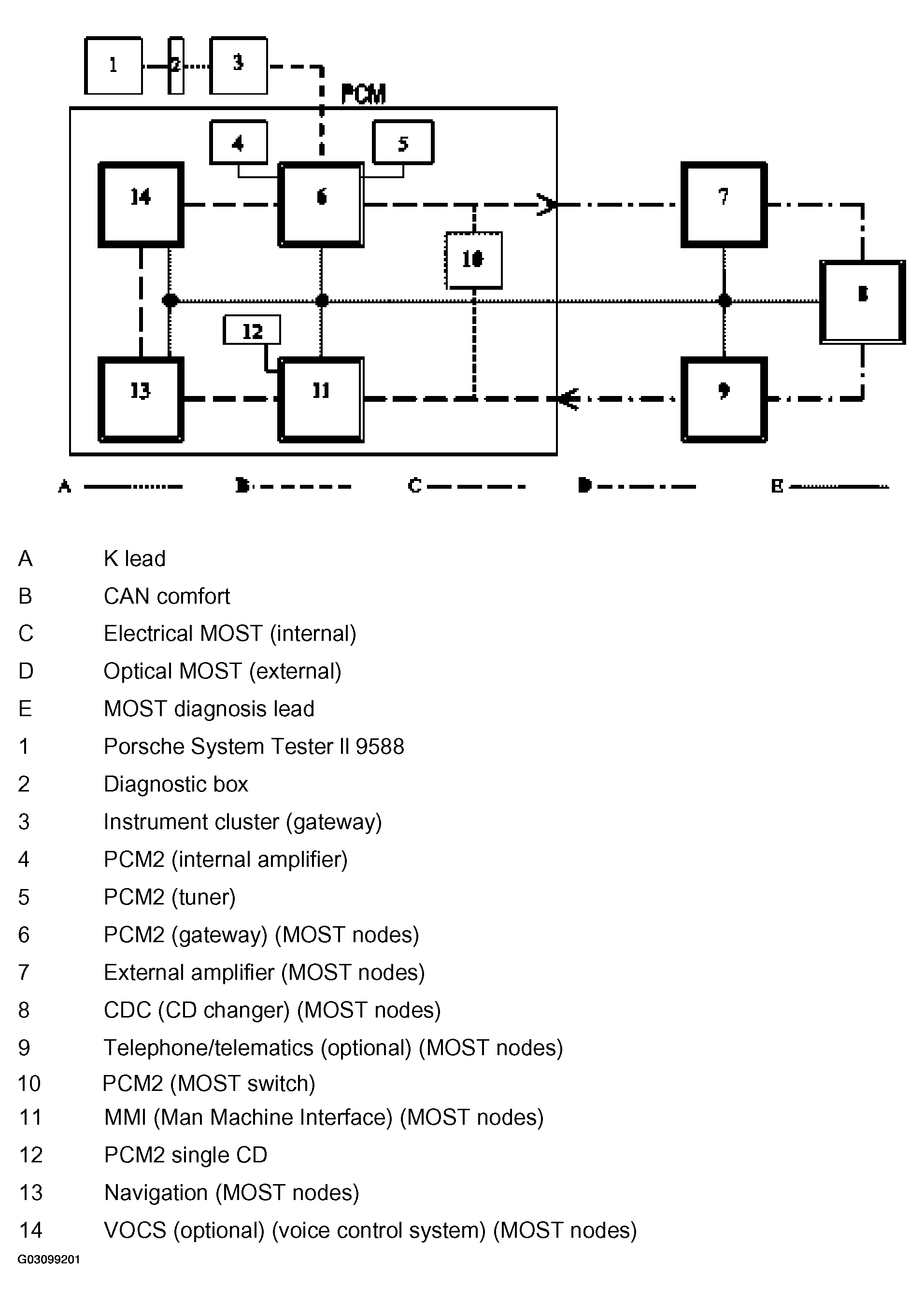

Fig 1: Identifying CDR23 Circuit

Courtesy of PORSCHE OF NORTH AMERICA, INC.
