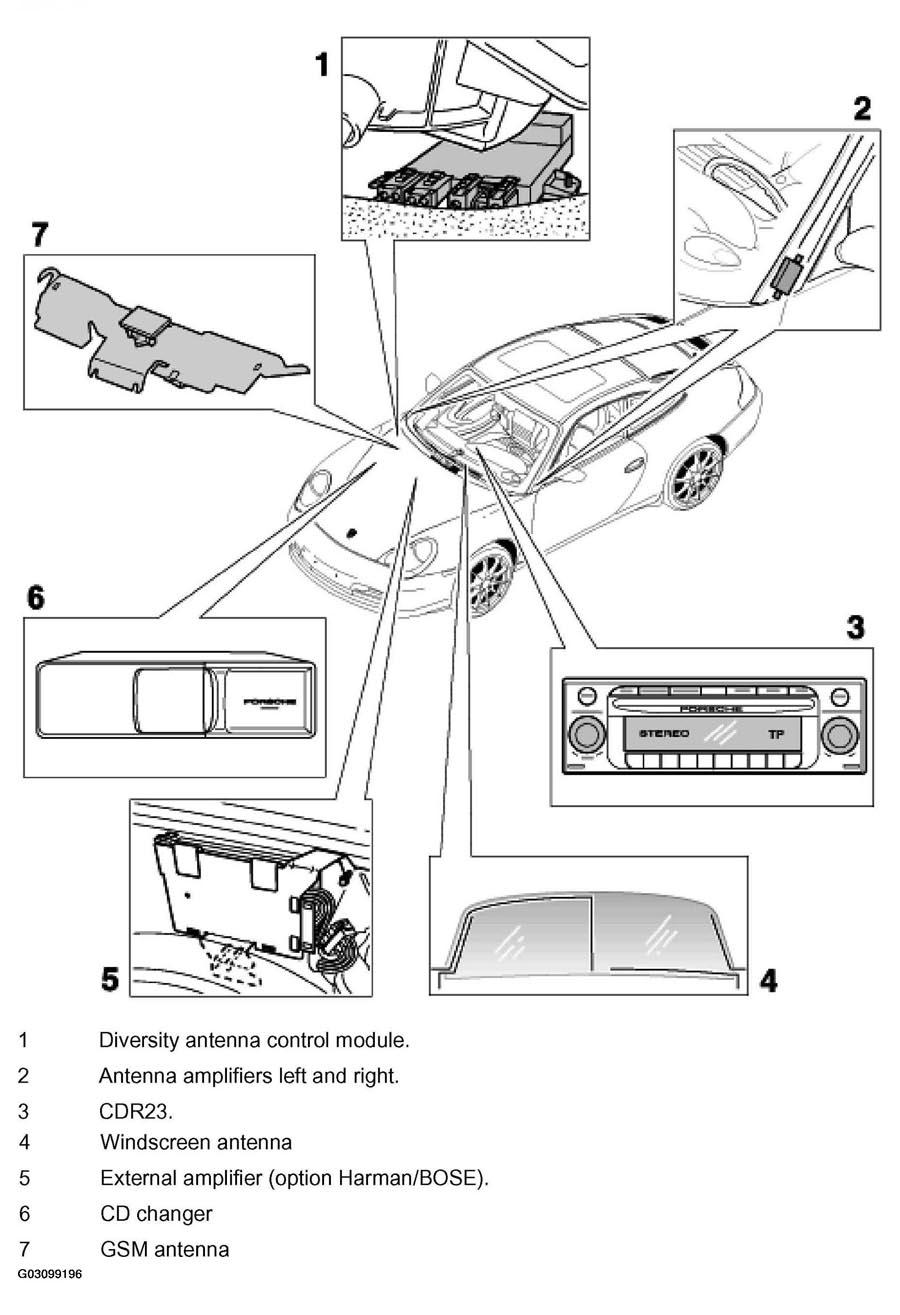

CDR23 component arrangement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying CDR23 Component Arrangement

Courtesy of PORSCHE OF NORTH AMERICA, INC.

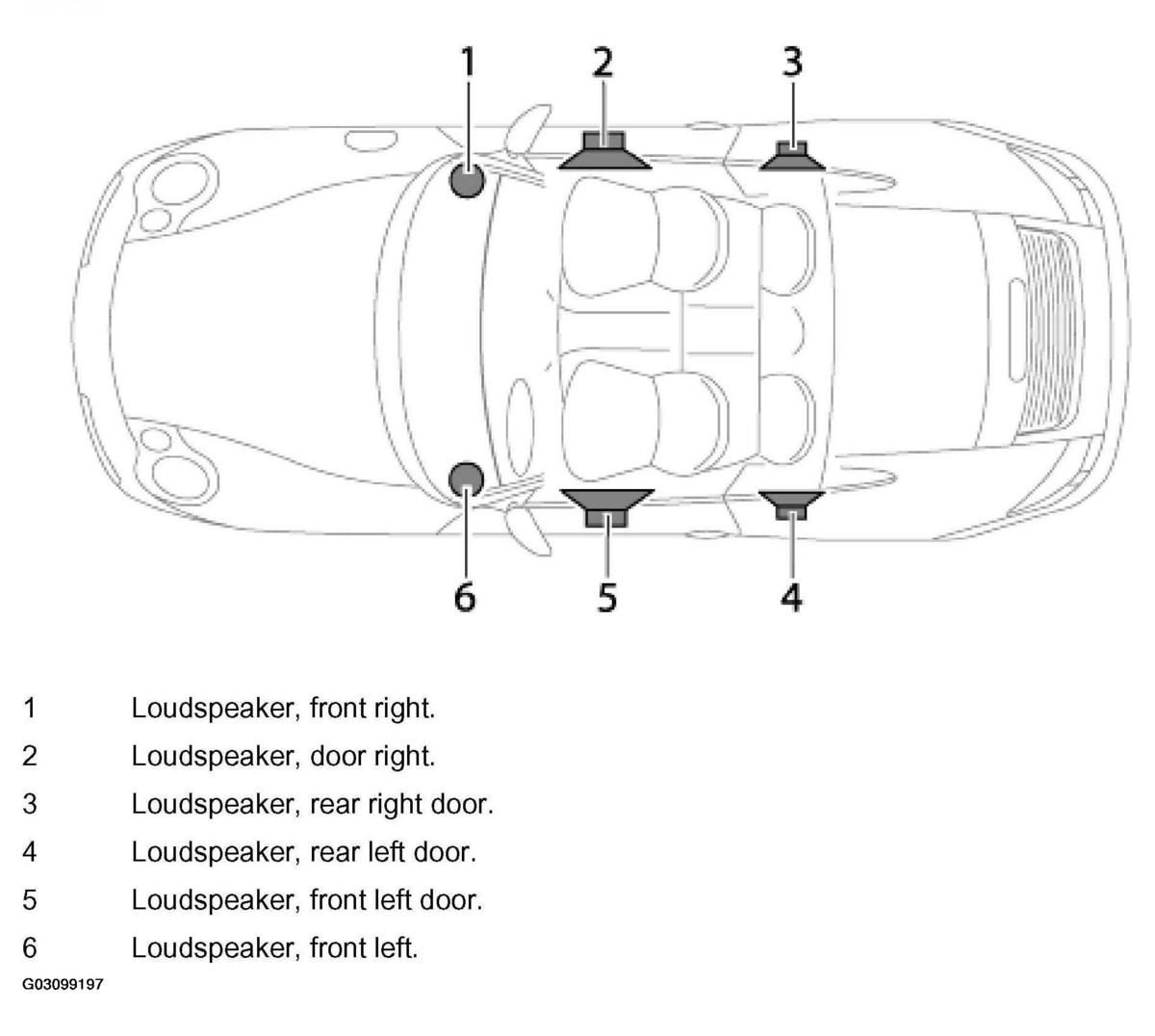

Loudspeaker base

Fig 2: Identifying Loudspeaker System - Base

Courtesy of PORSCHE OF NORTH AMERICA, INC.

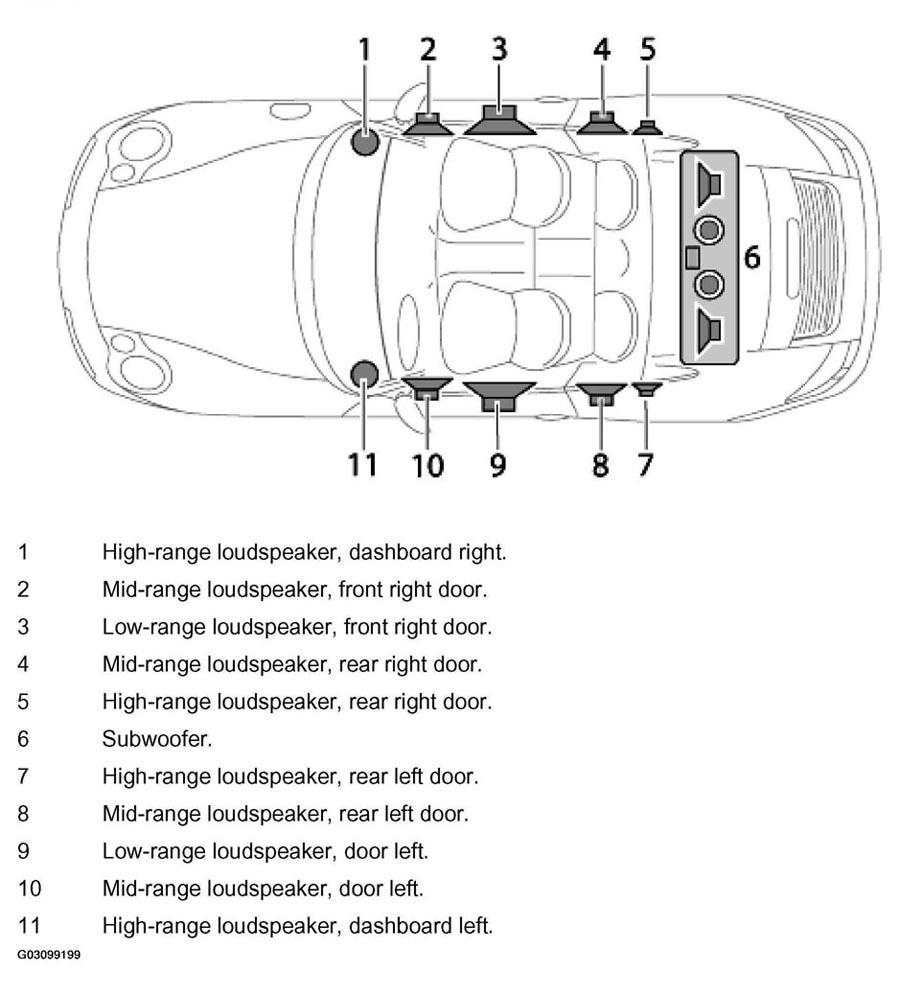

Loudspeaker sound package

Fig 3: Identifying Loudspeaker Sound Package

Courtesy of PORSCHE OF NORTH AMERICA, INC.

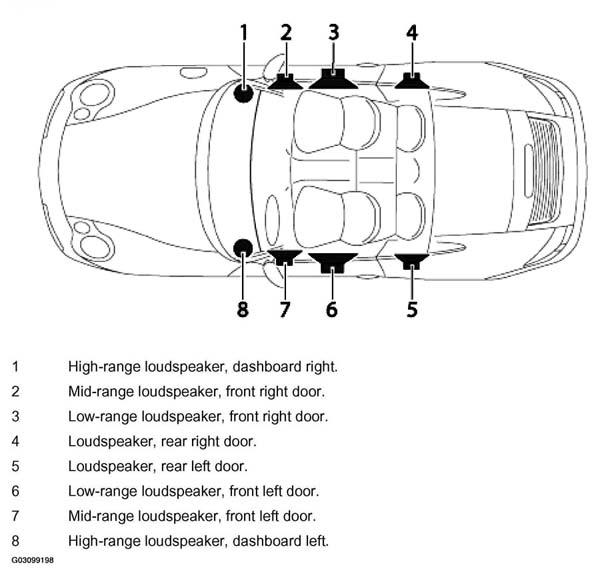

High-end loudspeaker

Fig 4: Identifying High-End Loudspeaker

Courtesy of PORSCHE OF NORTH AMERICA, INC.
