Installing Drive Belt

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

1. Guide the drive belt with the flat side -1-  first past the vibration damper -2-  .

   If you intend to reuse the old belt, make sure to observe the running direction marked earlier.

   1. 1.1. Position the belt on the running track on the vibration damper.

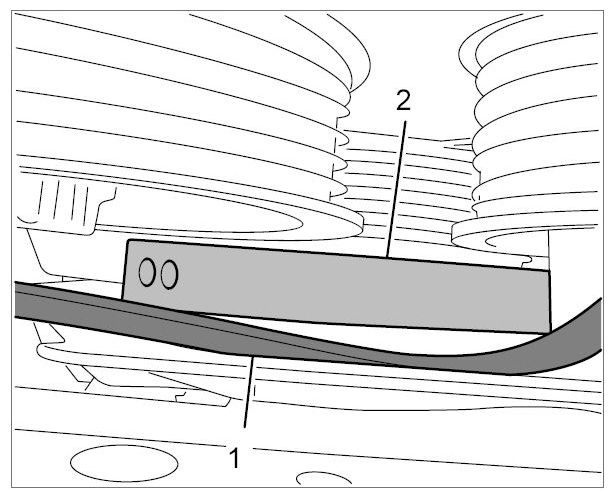

      Fig 1: Identifying Drive Belt And Vibration Damper

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Guide the drive belt -1-  to the left past the coolant pump pulley.

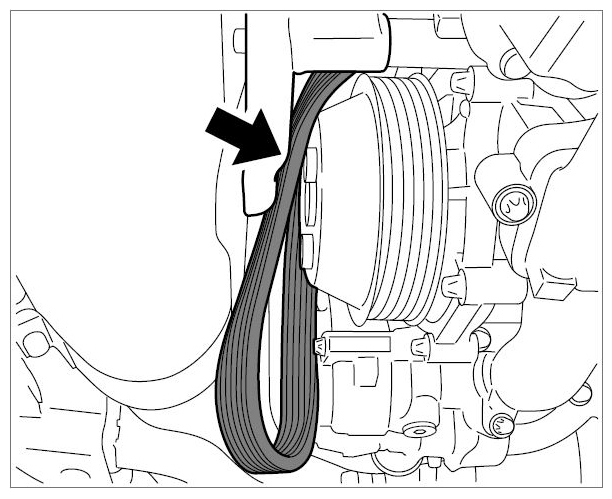

   Fig 2: Identifying Guide Drive Belt And Coolant Pump

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Then guide the flat side of the belt through between the pulley and engine carrier -arrow-  .

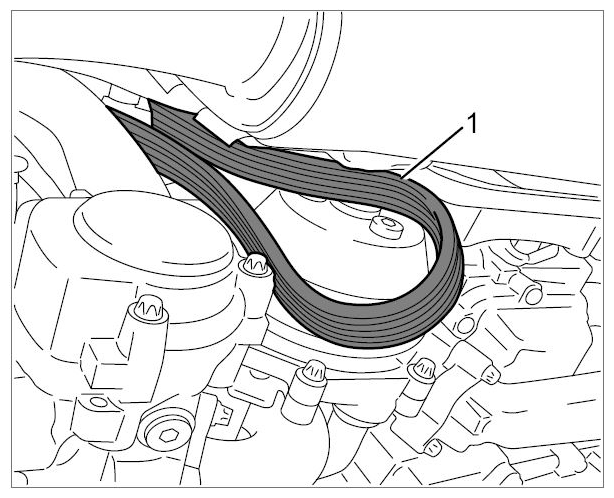

      Fig 3: Locating Drive Belt (Flat Side) On Coolant Pump Pulley

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit the drive belt on the pulleys for the air conditioning compressor -4-  , power-steering pump -3-  and generator -2-  .
   1. 3.1. Then, pre-position it on the tensioning roller -7-  .

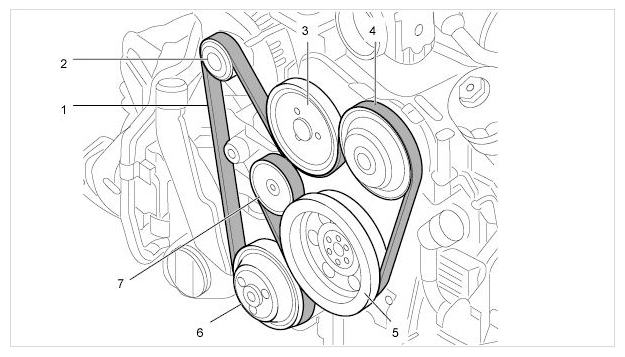

      Fig 4: Drive Belt Routing Diagram

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Turn the belt tensioner -3-  clockwise as far as it will go using an open-ended wrench -2-  (a/f 32) and at the same time place the drive belt -1-  on the tensioning roller under the generator.

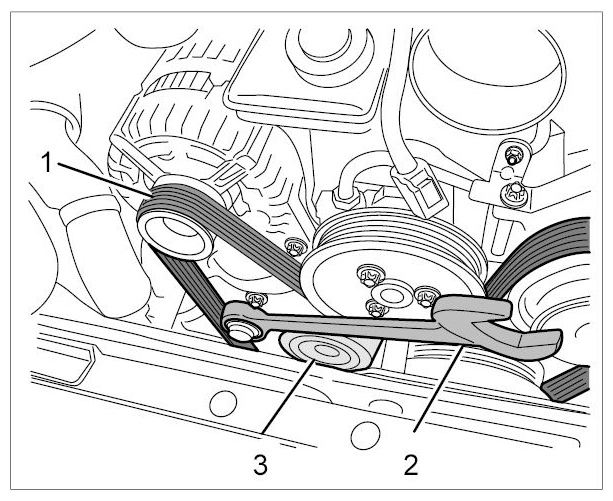

   Fig 5: Slackening/Tensioning Drive Belt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Allow the belt tensioner to slide back slowly into tensioning position.

   Information

   • The drive belt must be positioned correctly on all pulleys.
6. Check belt routing and position.
7. Fit special screw for engine carrier (M10 x 130) -1-  with the spacer sleeve -2-  .
   1. 7.1. To do this, insert the screw through the bores in the rear apron and rear carrier and the spacer sleeve.

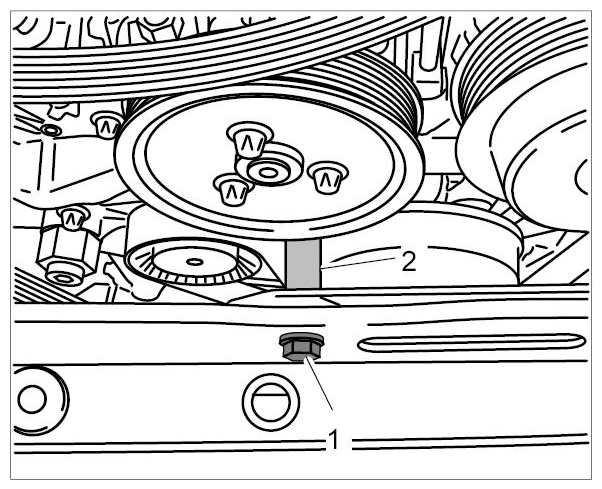

      Fig 6: Identifying Special Screw On Engine Carrier And Spacer Sleeve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Tighten special screw.

   → Tightening torque: 65 Nm (48 ftlb.)

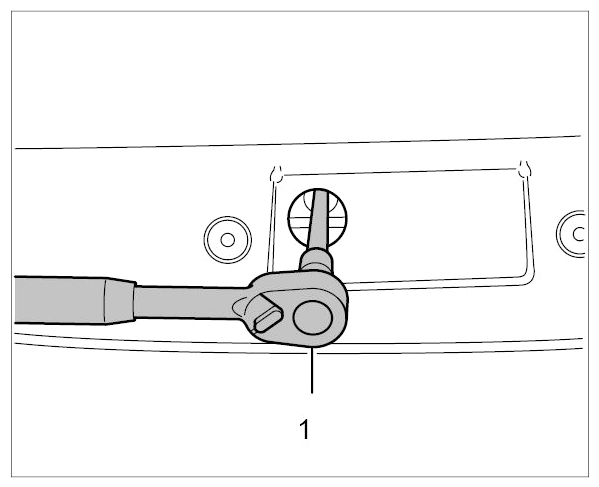

   Fig 7: Tightening Special Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Fit number plate.
