Removing Drive Belt

Mark the running direction of the drive belt (with a paint marker, for example) if you intend to reuse it.

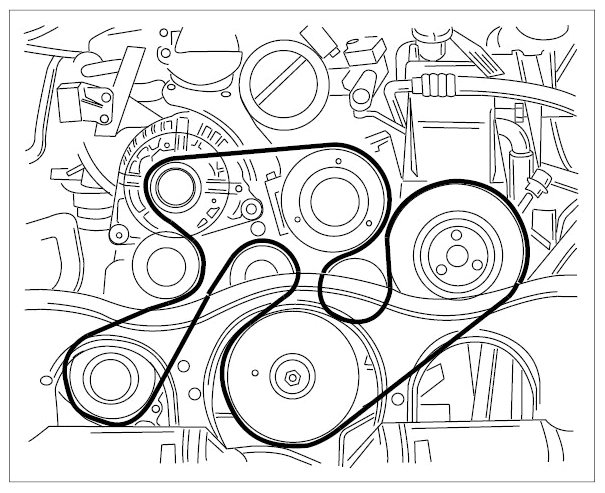

Fig 1: Drive Belt Routing Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only remove the power-steering pump wheel when the drive belt is completely relieved.
Unscrew three external Torx screws (M8 x 12) -arrows- on the hydraulic pump pulley by about half a turn.

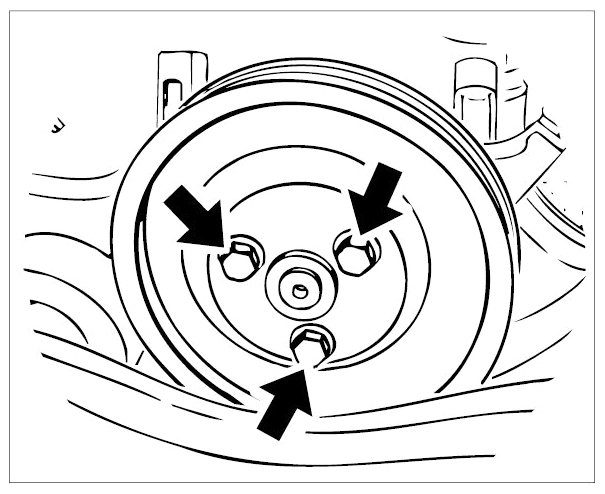

Fig 2: Locating Screws On Power-Steering Pump Pulley
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The drive belt can be cut if it needs to be replaced.
Slacken the drive belt at the tensioning roller by turning it clockwise -arrow- .

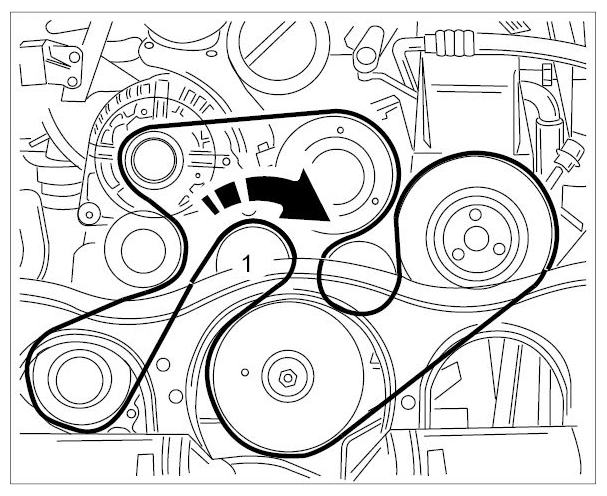

Fig 3: Turning Drive Belt Tensioning Pulley
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the drive belt at the deflection roller under the generator.
Allow the belt tensioner to slide back to its initial position.
Unscrew three external Torx screws (M8 x 12) on the pulley and remove the pulley -arrow- .

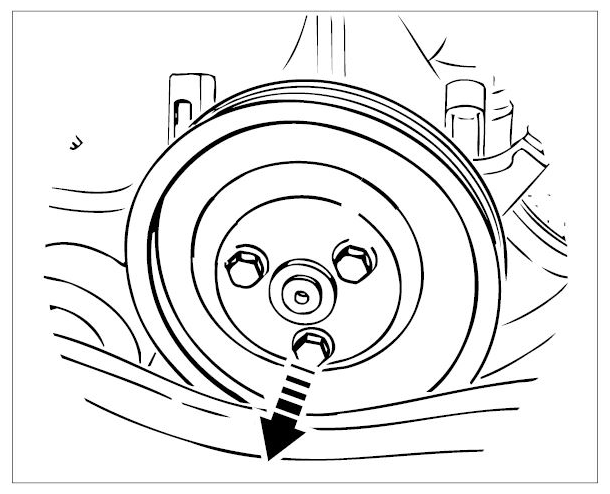

Fig 4: Removing Pulley On Power-Steering Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the drive belt past the engine carrier and out of the engine compartment.
Check the drive belt and pulleys for particles of dirt.
