Installing Steel Pulley

→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheetmetal panels.

1. Install steel crankshaft pulley.
   1. 1.1. Use a new bolt and a new friction plate.
   2. 1.2. Fit pulley -1-  with friction plate onto the crankshaft flange. Check installation position of the dowel pin.
   3. 1.3. Fit and tighten a new M14 hexagon-head bolt.
   4. 1.4. Holding wrench 9548  must be positioned on the pulley for countering purposes.
   5. 1.5. Tighten hexagon-head bolt.

      Get another person to help you do this because of the high tightening torque required.

      → Tightening torque: 170 Nm (126 ftlb.)

      → Tightening torque: 250 Nm (185 ftlb.)

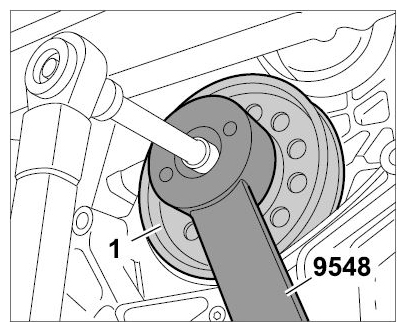

      Fig 1: Tightening Fastening Pulley

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
