Installing Belt Tensioner

Slide belt tensioner -1-  onto the tensioning lever. Fit and tighten two M8 screws -2-  and one M6 screw -3-  .

→ Tightening torque: 23 Nm (17 ftlb.)

→ Tightening torque: 10 Nm (7.5 ftlb.)

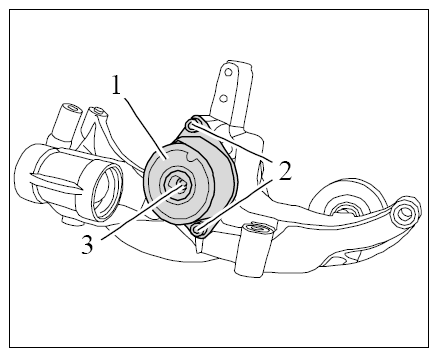

Fig 1: Identifying Belt Tensioner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Install unit carrier -2-  and fit and tighten M10 x 60 screws -1-  .

   → Tightening torque: 65 Nm (48 ftlb.)

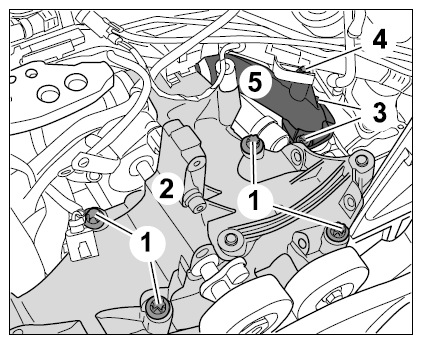

   Fig 2: Identifying Unit Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Install coolant flange.

   Replace all sealing rings.

   Fit coolant flange. Fit and tighten two M6 x 16 screws and one screw on the cable rail.

   → Tightening torque: 10 Nm (7.5 ftlb.)

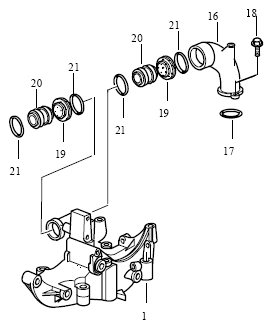

   Fig 3: Identifying Unit Carrier Sealing Rings

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
