WM 137319 Removing And Installing Belt TENSIONER (Turbo Coupe, Turbo CABRIO, Gt2): Information

Overview

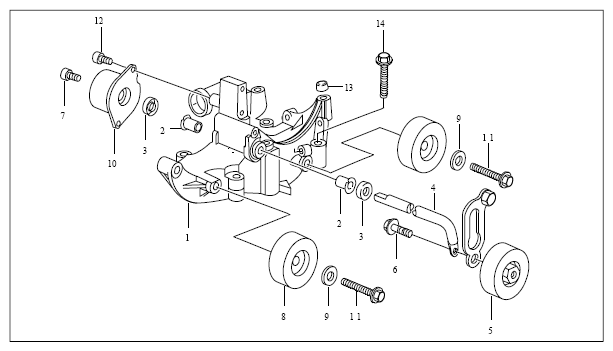

Fig 1: Overview Of Belt Tensioner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unit carrier
2. Bush
3. Dust boot
4. Tensioning lever
5. Tensioning roller
6. Screw, M10 x 30
7. Cheese head bolt, M6 x 16
8. Deflection roller
9. Washer
10. Belt tensioner
11. Screw, M10 x 55
12. Cheese head bolt, M8 x 16
13. Dowel sleeve
14. Screw, M10 x 60
