Removing Belt Tensioner

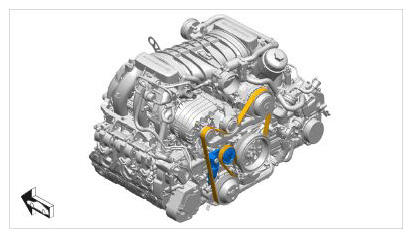

Installation position of drive belt and belt tensioner:

Fig 1: Identifying Belt Tensioner Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

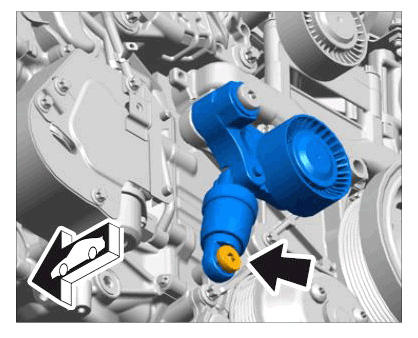

1. Unscrew fastening screw at the bottom -arrow-  of the tensioner.
   Fig 2: Loosening Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

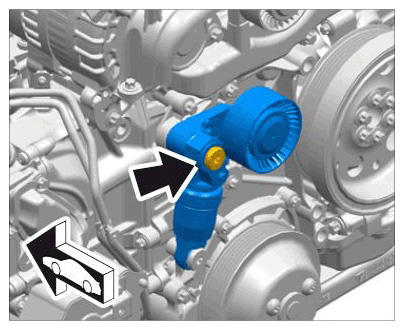

2. Unscrew fastening screw at the top -arrow-  of the belt tensioner.
   Fig 3: Removing Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lift the belt tensioner up and off.

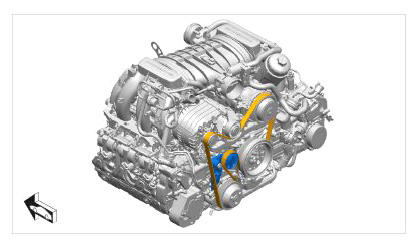

Installation position of drive belt and belt tensioner:

Fig 1: Identifying Belt Tensioner Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

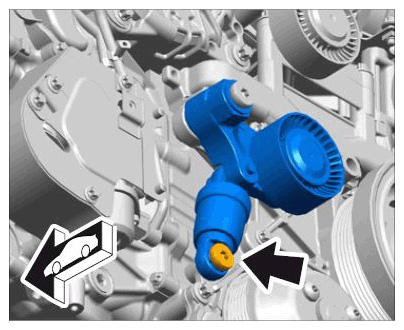

1. Unscrew fastening screw at the bottom -arrow-  of the tensioner.
   Fig 2: Loosening Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

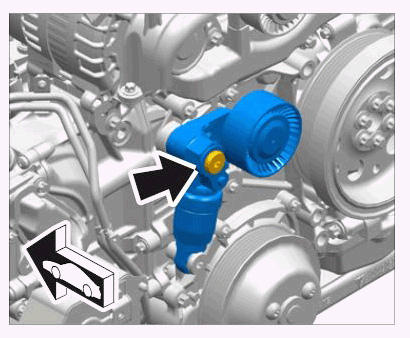

2. Unscrew fastening screw at the top -arrow-  of the belt tensioner.
   Fig 3: Removing Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lift the belt tensioner up and off.
