Replacing Tensioner/Damper Element

  1. Clamp belt tensioner in a vice at the hexagon.

    Use protective jaws!

  2. Unscrew fastening screw -arrow-  on the lever.

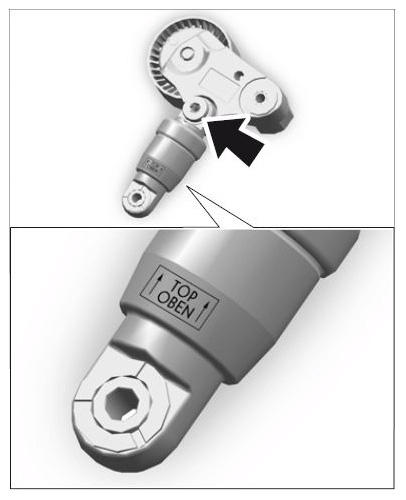

    Fig 1: Locating Damper/Tensioner
    G09816547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • When fitting the damper element/tensioner, make sure that the lettering can be read from outside.
    • The bellows must be facing upwards.
  3. Fit new tensioner on the holder with the deflection roller and check installation position.
    1. 3.1. Tighten screw (M8 x 33).

      Tightening torque 23 Nm (17 ftlb.)



  1. Clamp belt tensioner in a vice at the hexagon.

    Use protective jaws!

  2. Unscrew fastening screw -arrow-  on the lever.

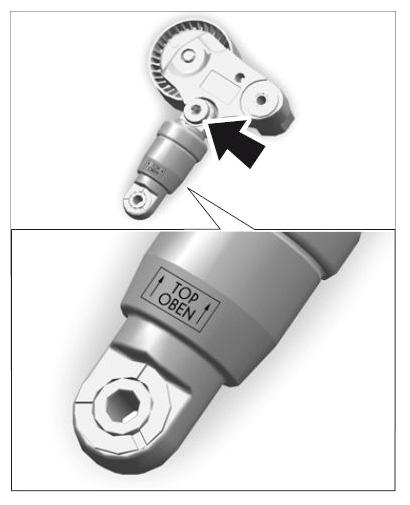

    Fig 1: Locating Damper/Tensioner
    G09816771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • When fitting the damper element/tensioner, make sure that the lettering can be read from outside.
    • The bellows must be facing upwards.
  3. Fit new tensioner on the holder with the deflection roller and check installation position.
    1. 3.1. Tighten screw (M8 x 33).

      Tightening torque 23 Nm (17 ftlb.)
