Removing Drive Plate For Converter

NOTE: The toothed segment 9538/1 must be bored to ø 15 mm to guarantee a perfect fit and to avoid damaging the thread in the crankcase.
  1. To counter, fit toothed segment 9538/1 to the crankcase using an M12 x 50 hexagon-head bolt (fine thread).

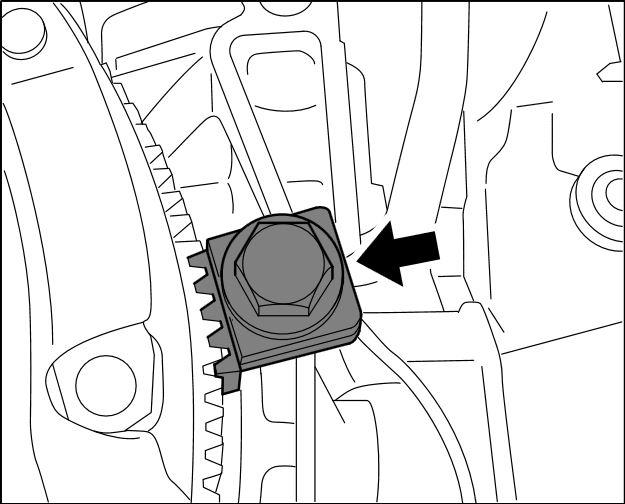

    2. Fig 1: Toothed Segment 9538/1
    G00540084Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen and unscrew eight M10 x 25 fastening screws on the drive plate. Remove drive plate.

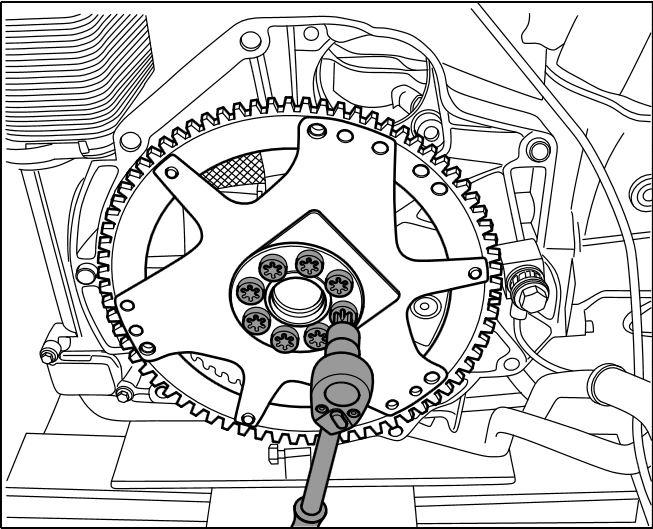

    3. Fig 2: Detaching Drive Plate
    G00540085Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen fastening screw for toothed segment.
