Subsequent Work

Information

Loosen and tighten screws on the component according to specifications.

1. Install the clutch.

   → 305019 REMOVING AND INSTALLING CLUTCH .

   1. 1.1. Centre clutch plate on the flywheel using centering mandrel 9102  , position pressure plate together with ring gear and secure with nine cheese head bolts (hexagon socket, M8 x 45).

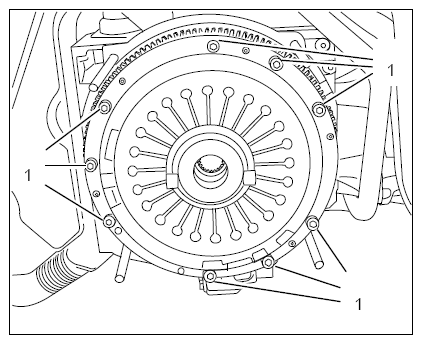

      Fig 1: Identifying Pressure Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Screw in cheese head bolts evenly and crosswise and tighten to the specified torque. To counter, position toothed segment p201 b  on stud.

      → Final tightening: 23 Nm (17 ftlb.)

2. Remove and install transmission.

   → 343519 REMOVING AND INSTALLING TRANSMISSION .
