Removing Flywheel - Porsche Doppelkupplung (PDK)

Position special tool toothed segment 9538/1 -1- for countering at the starter ring gear and place it on the cast strut.

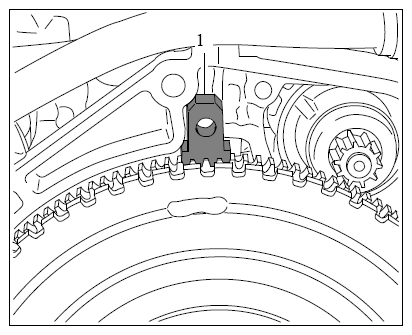

Fig 1: Identifying Toothed Segment Position For Loosening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Removing and installing flywheel
- Leaks
- Risk of damage to the flywheel and adjacent components
→ Be very careful during removal and installation.

→ Get another person to help because of the weight.
Loosen and unscrew ten internal serration screws (M10 x 29) on the flywheel -1- . Carefully remove the flywheel (it is quite heavy - so be careful).

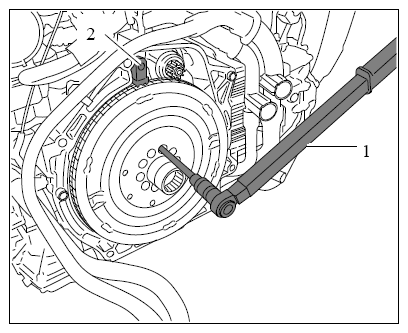

Fig 2: Loosening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Replace internal serration screws.
