Removing Flywheel - PDK Transmission

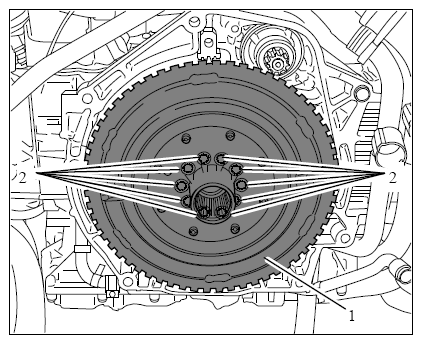

Flywheel for PDK -1- with ten fastening screws -2-

Fig 1: Identifying Threaded Joint On Flywheel (PDK)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

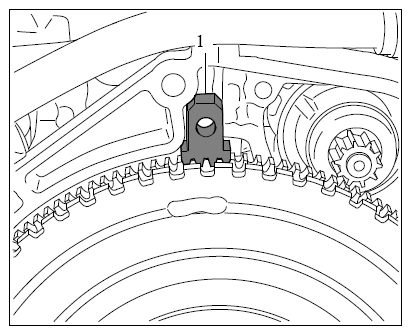

1. Position special tool toothed segment 9538/1 -1-  for countering at the starter ring gear.
   1. 1.1. Place toothed segment on the cast strut.
      Fig 2: Identifying Toothed Segment Position For Loosening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

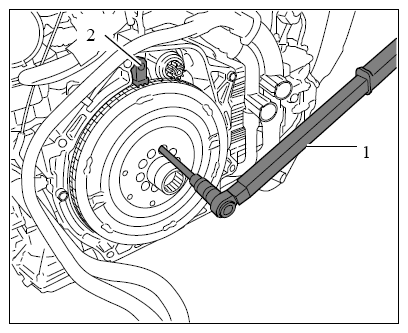

2. Loosen and unscrew ten M10 x 29 (internal serration) fastening screws. Carefully remove the flywheel (it is quite heavy - so be careful).
   1. 2.1. Fastening screws must be replaced.
      Fig 3: Loosening Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
