Subsequent Work

Information

Loosen and tighten screws on the component according to specifications.

Information

Loosen and tighten screws on the component according to specifications.

1. Install the clutch.

   → 305019 REMOVING AND INSTALLING CLUTCH .

   1. 1.1. Centre clutch plate with centering mandrel 9102  on flywheel, position pressure plate together with ring gear and fix in place using the nine cheese head bolts (M8 x 40) -1-  .

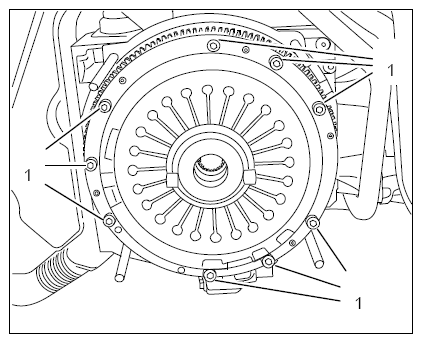

      Fig 1: Identifying Pressure Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Screw in cheese head bolts evenly and crosswise and tighten to the specified torque. To counter, position toothed segment p201 b  on stud.

      → Final tightening: 23 Nm (17 ftlb.)

2. Mount transmission.

   → 343527 REMOVING AND MOUNTING TRANSMISSION .

3. Install engine.

   → 100119 REMOVING AND INSTALLING ENGINE .
