Disassembling Crankshaft
CAUTION:
Ingress of dirt
- Danger of material damage due to blocked oil bores/oil ducts.
→ Absolute cleanliness is essential when working on the engine.
→ Lay removed engine parts on a clean base and make sure to cover them.
→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

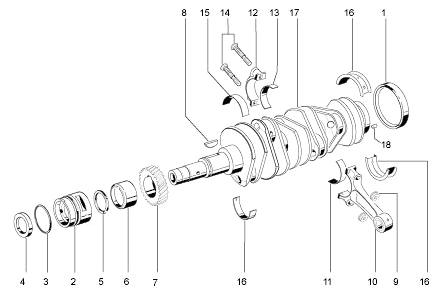

Component overview
| Item | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Radial shaft seal | 1 | Replace | |
| 2 | Bearing sleeve, bearing 8 | 1 | Replace | |
| 3 | Round seal | 1 | Replace | |
| 4 | Radial shaft seal | 1 | Replace | |
| 5 | Circlip | 1 | ||
| 6 | Intermediate ring | 1 | Heat on a heating plate, push on as far as it will go. | |
| 7 | Timing gear | 1 | Check toothing for wear, remove if necessary | Note reference number, paired with intermediate shaft, only install together, heat on a heating plate, push on as far as it will go. The collar of the timing gear must point to bearing 7 |
| 8 | Woodruff key | 1 | Replace | |
| 9 | Connecting rod nut, M9 x 1.25 | 12 | Replace, observe prescribed tightening torque. | |
| 10 | Connecting rod | 6 | Note installation position, weight and classification or matching number for connecting-rod bearing cap. | |
| 11 | Sputtered smooth bearing shell | 6 | Only fitted on rod side, two retaining lugs, replace. | |
| 12 | Connecting-rod cap | 6 | Note matching number for connecting rod. | |
| 13 | Smooth bearing shell | 6 | One locking lug, replace. | |
| 14 | Connecting rod bolts | 12 | Check length of bolts. | Replace if necessary. |
| 15 | Main bearing shells for bearings 2-7 | 12 | Replace | |
| 16 | Thrust bearing shells | 2 | Replace | |
| 17 | Crankshaft | 1 | Clean carefully and visually inspect for damage. | |
| 18 | Roll pin, 6.0 x 16 | 1 | Check that it is seated correctly, replace if necessary. |
- Pull off roll pin (6 x 16) on crankshaft flange (flywheel side) using a vice-grip wrench.

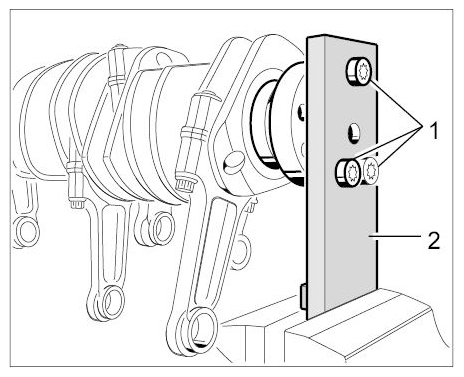

- Fit special tool retainer plate P209a on crankshaft flange (flywheel side) with three cheese head bolts.
- Clamp crankshaft in a vice using the retainer plate P209a (→ Crankshaft with retainer plate P209 a ).
- Loosen connecting rod bolts (multiple-tooth collar nut) with a socket wrench insert. Take off connecting rod and connecting-rod bearing cap.
- Remove old connecting-rod bearing shells.
Information

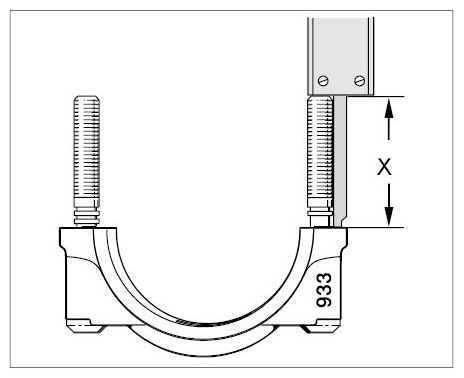

- Before assembly, make sure to check the elongation of the connecting rod bolts. If the dimension X (38.3 mm) is exceeded, the bolts must be replaced in accordance with the description for installation and removal.
- Measure the length of the connecting rod bolts. To do this, determine the permitted length of the bolt using a depth gauge → Length of connecting rod bolt .→ Nominal value: 38.3 mm
- Remove circlip on the intermediate ring with circlip pliers.
- Remove spacer ring and timing gear with a conventional puller.

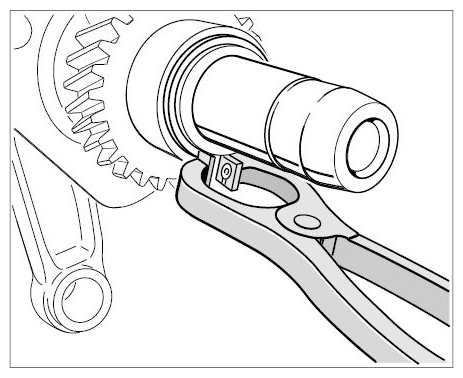

- Raise Woodruff key with side cutters and remove it.
- Remove crankshaft from the retainer plate and clean it carefully (e.g. with solvent naphtha).
- Rinse out lubrication bores on the crankshaft several times with solvent naphtha and blow out with compressed air.
- Check bearings on crankshaft (main bearing and connecting-rod bearing) for signs of damage and wear.
