Removing Crankshaft

→ Absolute cleanliness is essential when working on the engine.

→ Lay removed engine parts on a clean base and make sure to cover them.

→ Use the cover for dust protection when fitting the engine NR.165  on the engine assembly support.

→ The holding wrench must make contact with the pulley when tightening.

→ Get another person to help.

1. Loosen the pulley. To do this, a second person should counter with the relevant holding wrench at the same time. Do not re-use the hexagon-head bolt.

   → 137619 REMOVING AND INSTALLING PULLEY .

   Please note: GT3 RS vehicles have an aluminum pulley as standard!

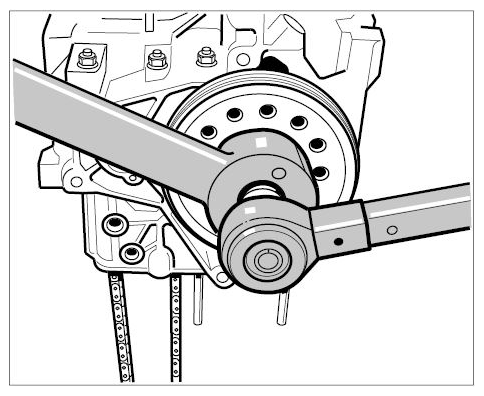

   Fig 1: Loosening Pulley

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen the 18 hexagon nuts (M8) on the crankcase cross bolt connection.
3. Loosen the two short through bolts on side 4-6 (flywheel side).

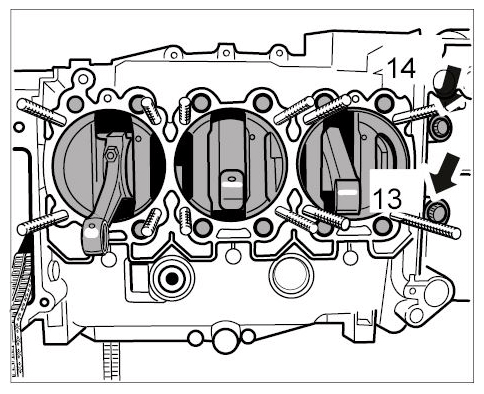

   Fig 2: Locating Through Bolts On Flywheel Side

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Loosen the fastening nuts (hexagon -1-  and multiple-tooth -2-  ) on and in the chain box (cylinder bank 1-3).

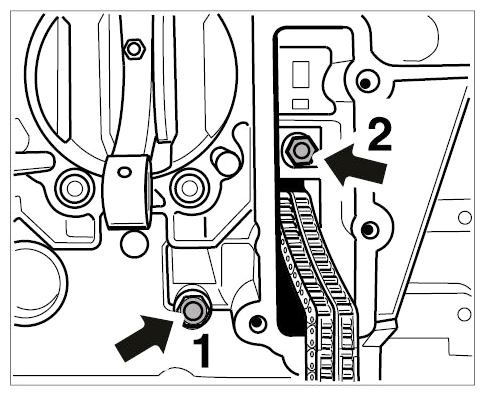

   Fig 3: Locating Cross Bolt Connection On Chain Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Loosen through bolts from the outside to the inside.

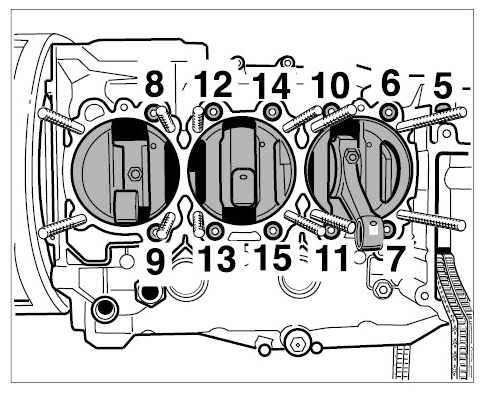

   Fig 4: Through Bolts Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Pull off through bolts.
   Fig 5: Locating Through Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

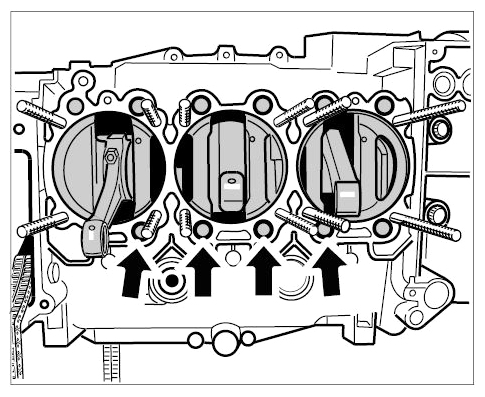

   • The through bolts in thrust blocks 2, 3, 4 and 5 -Arrows- can only be removed after lifting off crankcase half 1-3.
7. Lift off crankcase half 1-3.
8. Remove O-rings and through bolts on the thrust blocks -2, 3, 4 and 5-  .

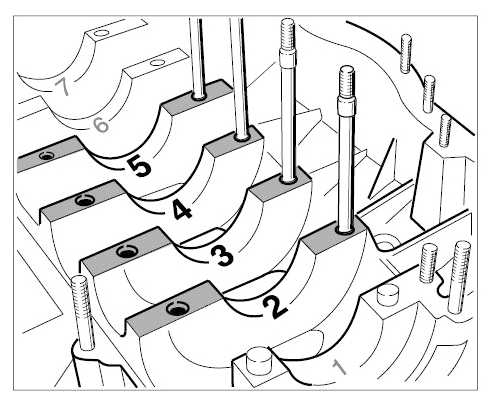

   Fig 6: Identifying O-Rings And Inner Through Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Lift out the crankshaft.
