WM 131020 Removing And Installing Pistons And Handling Tools (Except Turbo Coupe, Turbo S Coupe, Turbo S Coupe "Ed. 918 SPYDER", CARRERA 4 GTS, Turbo S CABRIO, Turbo S CABRIO "Ed. 918 SPYDER", CARRERA 4 GTS CABRIO, Gt3, Gt2, Gt3 RS, Gt2 RS, Gt3 RS 4.0): Tools
| Designation | Type | Number | Description | |
|---|---|---|---|---|

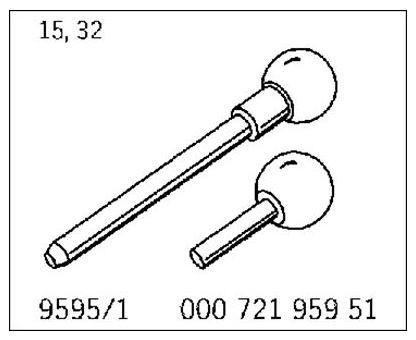

| locating pin | Special tool | 9595/1 | ||
| assembly aid | Special tool | 9598 | ||

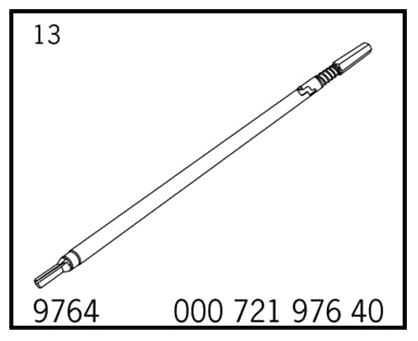

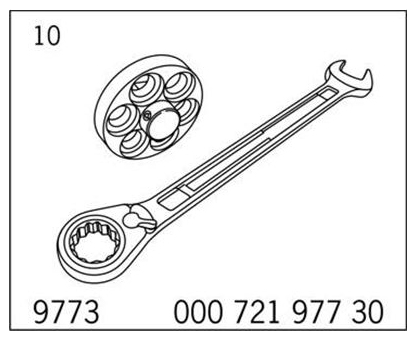

| Disassembly tool | Special tool | 9764 | ||
| turning device | Special tool | 9773 | ||
| Assembly tool | Special tool | 9776 | ||
| Disassembly tool | Special tool | 9777 | ||
| Retaining device | Special tool | 9778 | ||
| Piston receiving element | Special tool | 9778/1 | ||

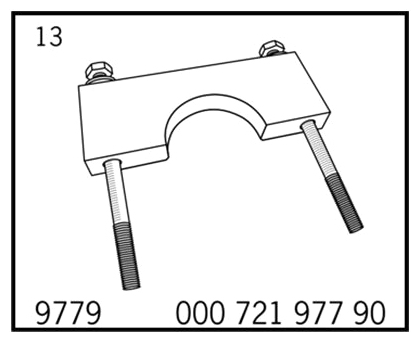

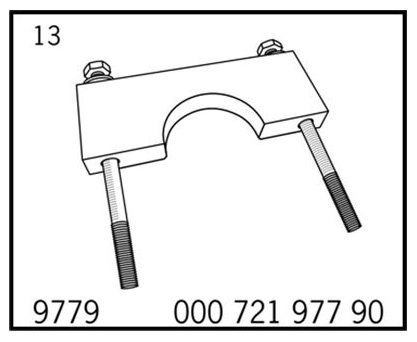

| holding bridge | Special tool | 9779 | ||
| Centering mandrel | Special tool | 9782 | ||
| Assembly aid | Special tool | 9783 | ||
| Funnel | Special tool | 9784 | ||

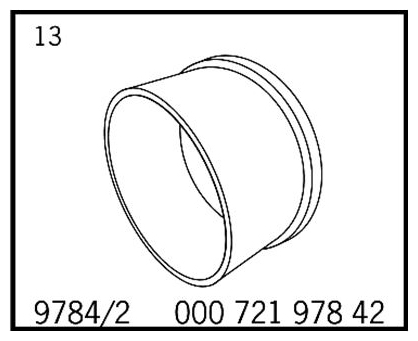

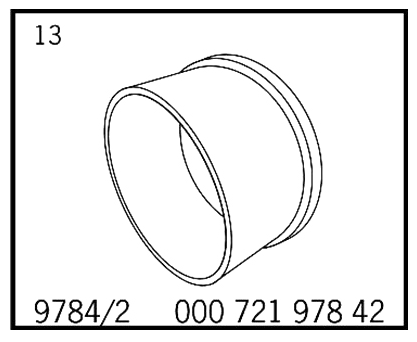

| funnel | Special tool | 9784/2 | ||

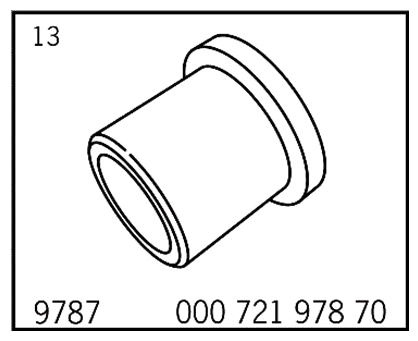

| Piston assembly aid | Special tool | 9787 | ||

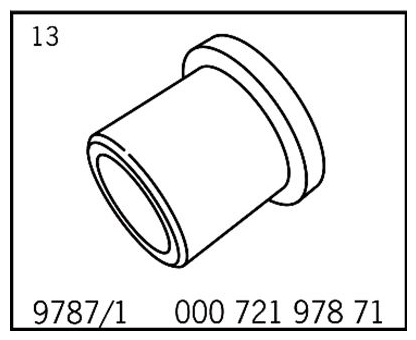

| piston assembly aid | Special tool | 9787/1 | ||

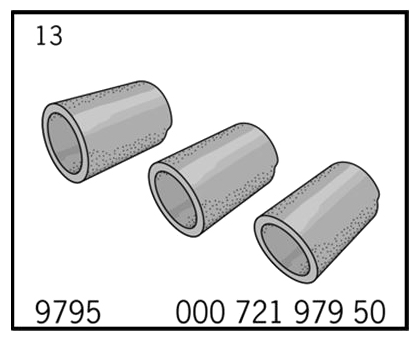

| assembly aid | Special tool | 9795 |

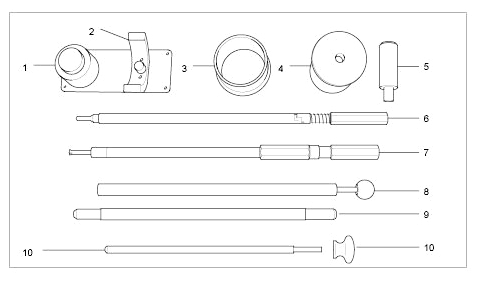

Tool overview

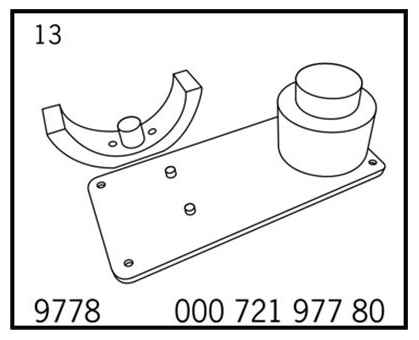

- Retaining device 9778 with piston receiving element with a diameter of 97 mm.

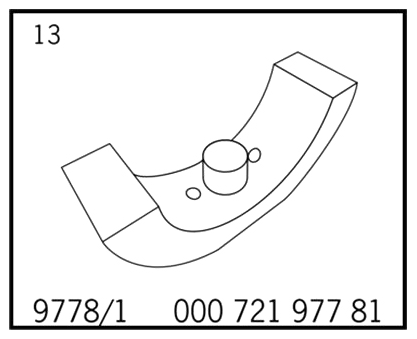

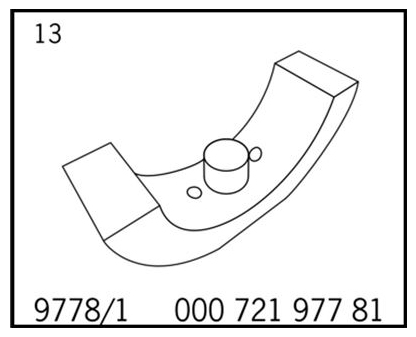

- Piston receiving element 9778/1 , diameter: 102 mm.

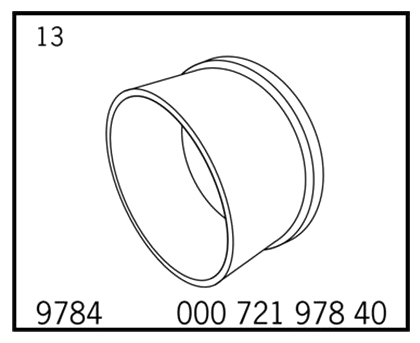

- Funnel 9784 or funnel 9784/2 for piston assembly, diameter: 97 mm or 102 mm.

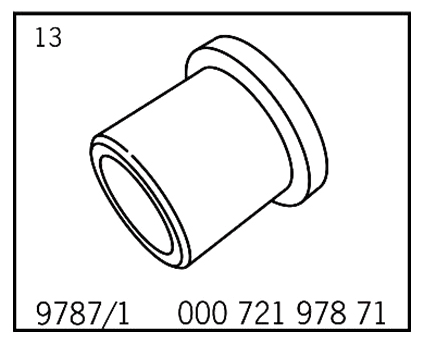

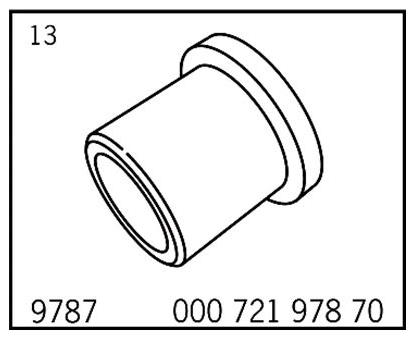

- Piston assembly aid 9787 , diameter: 97 mm or piston assembly aid 9787/1 , diameter: 102 mm.

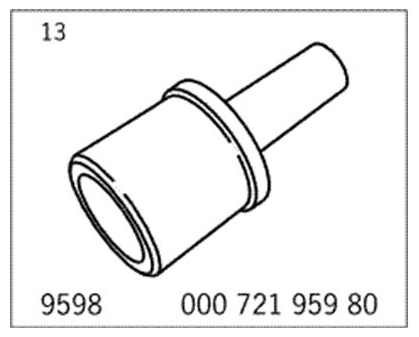

- Handle for assembly aid 9598 .

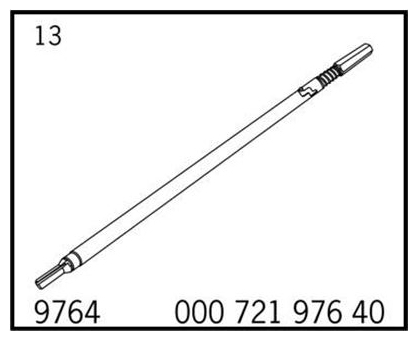

- Disassembly tool 9764 for piston-pin circlips.

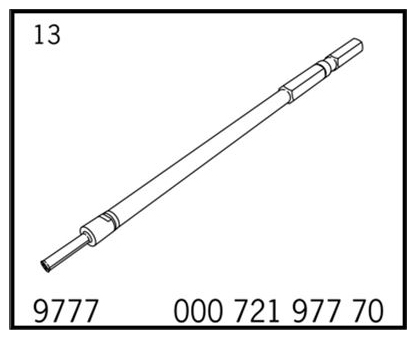

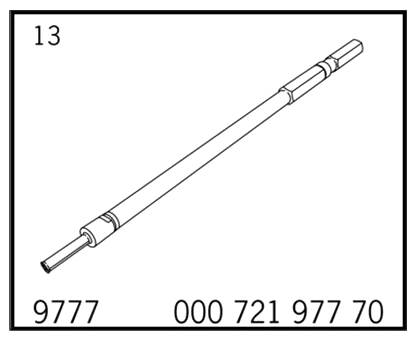

- Disassembly tool 9777 and assembly tool for piston pins.

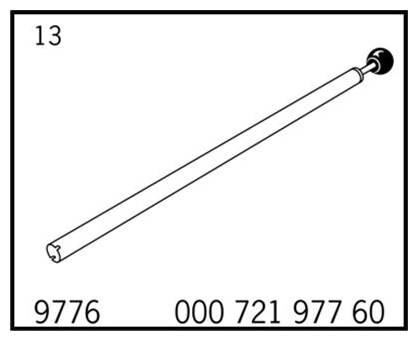

- Assembly tool 9776 for piston-pin circlips.

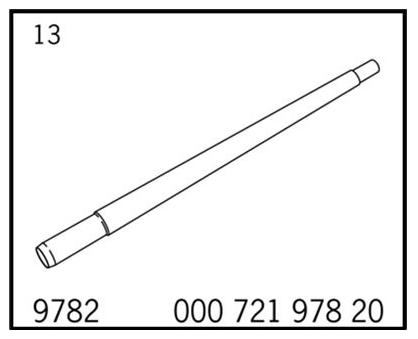

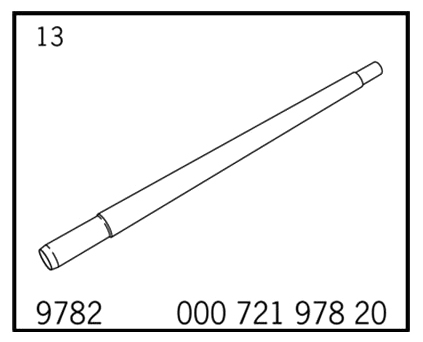

- Centering mandrel 9782 for connecting rods and pistons.

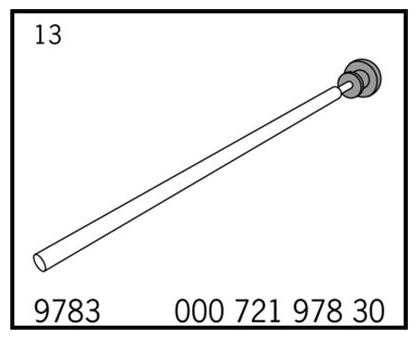

- Assembly aid 9783 for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6).

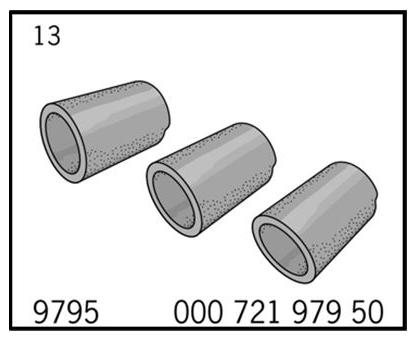

Not shown - Rubber sleeves, assembly aid 9795 for protecting cylinder linings (fitted on connecting rods for cylinders 1-3).
| Designation | Type | Number | Description | |
|---|---|---|---|---|
| locating pin | Special tool | 9595/1 | ||
| assembly aid | Special tool | 9598 | ||
| Disassembly tool | Special tool | 9764 | ||
| turning device | Special tool | 9773 | ||
| Assembly tool | Special tool | 9776 | ||
| Disassembly tool | Special tool | 9777 | ||
| Retaining device | Special tool | 9778 | ||
| Piston receiving element | Special tool | 9778/1 | ||
| holding bridge | Special tool | 9779 | ||
| Centering mandrel | Special tool | 9782 | ||
| Assembly aid | Special tool | 9783 | ||
| Funnel | Special tool | 9784 | ||
| funnel | Special tool | 9784/2 | ||
| Piston assembly aid | Special tool | 9787 | ||
| piston assembly aid | Special tool | 9787/1 | ||
| assembly aid | Special tool | 9795 |

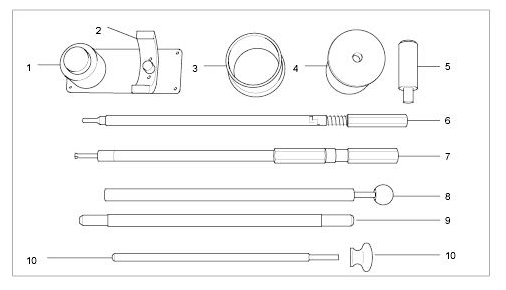

Tool overview
- Retaining device 9778 with piston receiving element with a diameter of 97 mm.
- Piston receiving element 9778/1 , diameter: 102 mm.
- Funnel 9784 or funnel 9784/2 for piston assembly, diameter: 97 mm or 102 mm.
- Piston assembly aid 9787 , diameter: 97 mm or piston assembly aid 9787/1 , diameter: 102 mm.
- Handle for assembly aid 9598 .
- Disassembly tool 9764 for piston-pin circlips.
- Disassembly tool 9777 and assembly tool for piston pins.
- Assembly tool 9776 for piston-pin circlips.
- Centering mandrel 9782 for connecting rods and pistons.
- Assembly aid 9783 for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6).
Not shown - Rubber sleeves, assembly aid 9795 for protecting cylinder linings (fitted on connecting rods for cylinders 1-3).
