WM 131020 Removing And Installing Pistons - Turbo (Turbo Coupe, Turbo S Coupe, Turbo S Coupe "Ed. 918 SPYDER", Turbo CABRIO, Turbo S CABRIO, Turbo S CABRIO "Ed. 918 SPYDER"): Tools

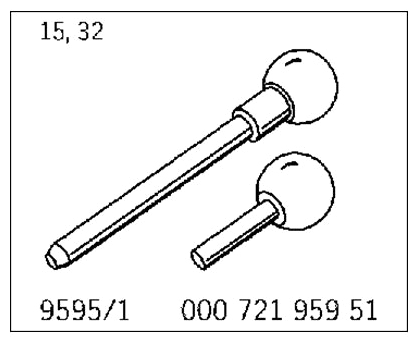

| Designation | Type | Number | Description | |
|---|---|---|---|---|
| locating pin | Special tool | 9595/1 | ||
| assembly aid | Special tool | 9598 | ||
| Disassembly tool | Special tool | 9764 | ||

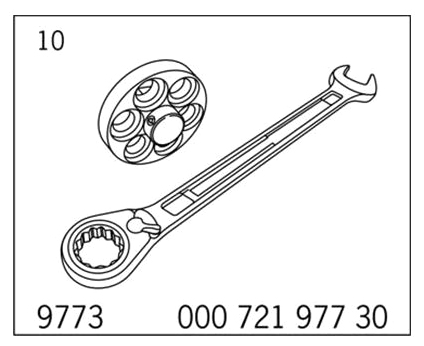

| turning device | Special tool | 9773 | ||
| Assembly tool | Special tool | 9776/1 | ||
| Disassembly tool | Special tool | 9777 | ||
| Retaining device | Special tool | 9778 | ||
| Piston receiving element | Special tool | 9778/1 | ||

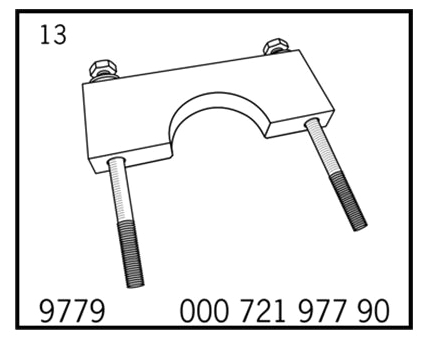

| holding bridge | Special tool | 9779 | ||
| Centering mandrel | Special tool | 9782 | ||
| Assembly aid | Special tool | 9783 | ||
| Funnel | Special tool | 9784/2 | ||
| Assembly aid for pistons | Special tool | 9787/1 | ||
| assembly aid | Special tool | 9795 |

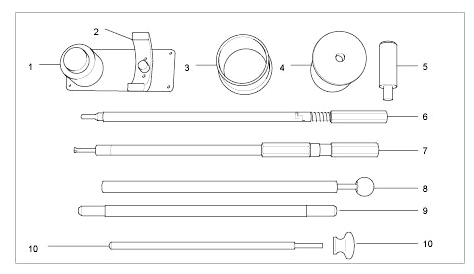

Tool overview:

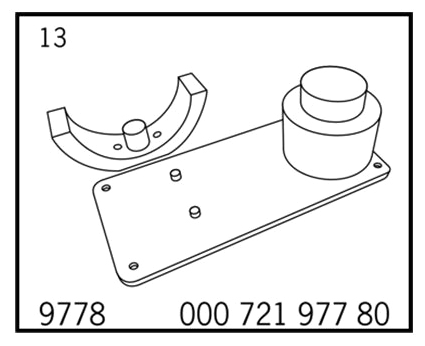

- Retaining device 9778 for piston receiving element 9778/1

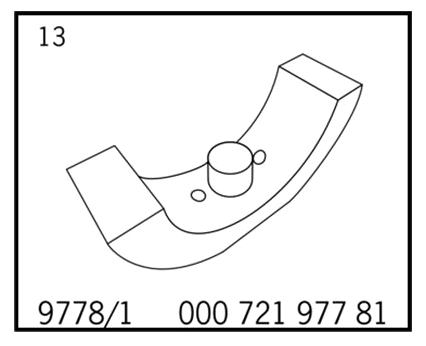

- Piston receiving element 9778/1 , diameter: 102 mm

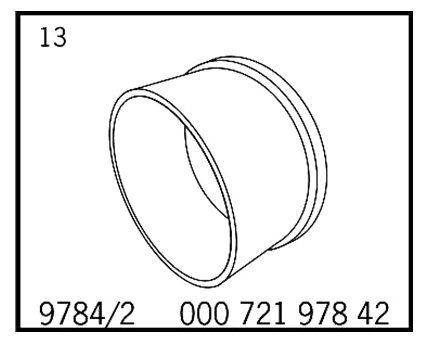

- Funnel 9784/2 for installing pistons, diameter: 102 mm

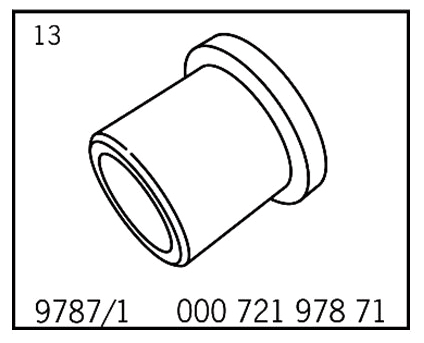

- Assembly aid for pistons 9787/1 , diameter: 102 mm

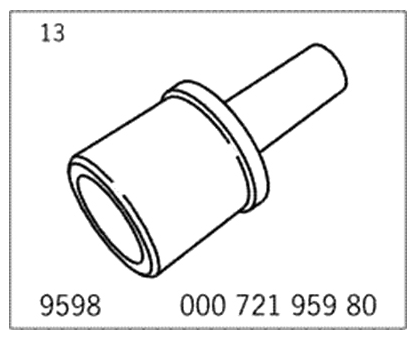

- Handle of assembly aid 9598

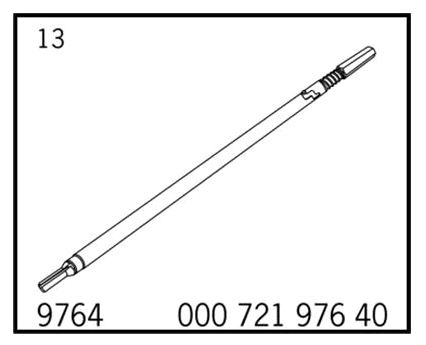

- Disassembly tool 9764 for piston-pin circlips.

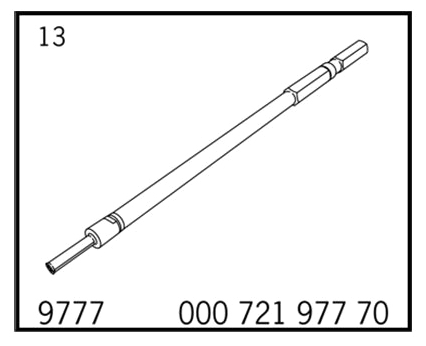

- Disassembly tool 9777 and assembly tool for piston pins.

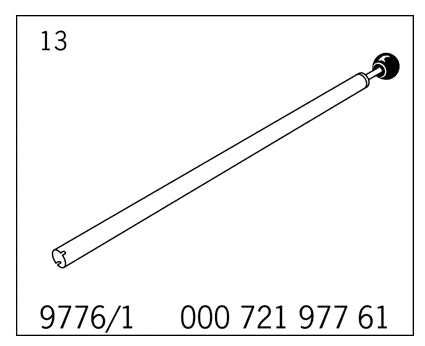

- Assembly tool 9776/1 for piston-pin circlip on turbo engine

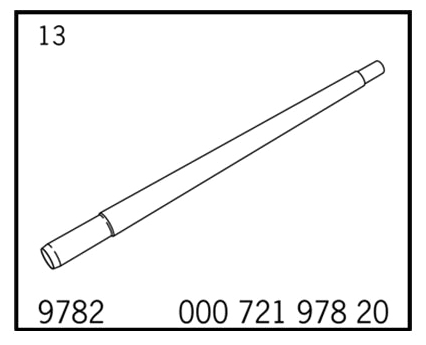

- Centering mandrel 9782 for connecting rods and pistons.

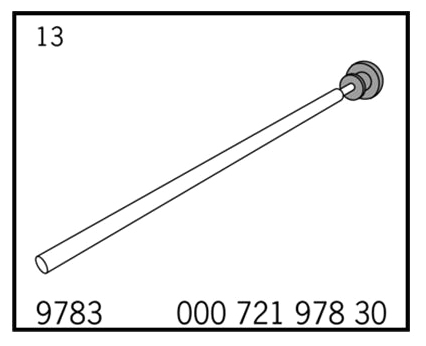

- Assembly aid 9783 for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6).

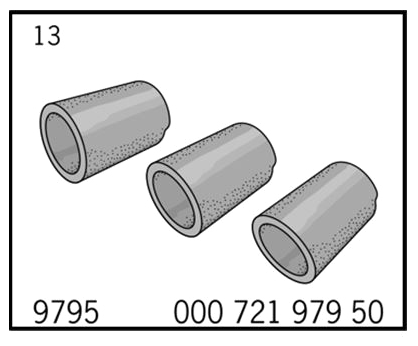

Not shown - Rubber sleeves, assembly aid 9795 for protecting cylinder linings (fitted on connecting rods for cylinders 1-3).
