Removing Pistons - Cylinder Bank 1-3

Information

• The specified positions relate to removing and installing components on the engine assembly support with the engine in a vertical position.
• Mark pistons in installation position using a water-resistant marker.

1. Unscrew screw plug (M30 x 1.5) -1-  for removing piston pins.
   1. 1.1. Replace sealing ring.

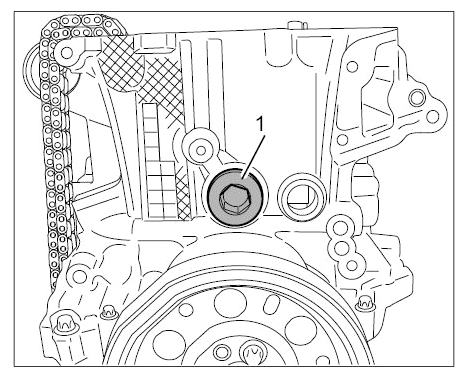

      Fig 1: Identifying Screw Plug And Piston Pins

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   To remove a piston-pin circlip:

2. Turn the crankshaft and vibration damper to the bottom dead center position U 1/4  and lock at this position using a locating pin 9595/1 -1-  .
   1. 2.1.

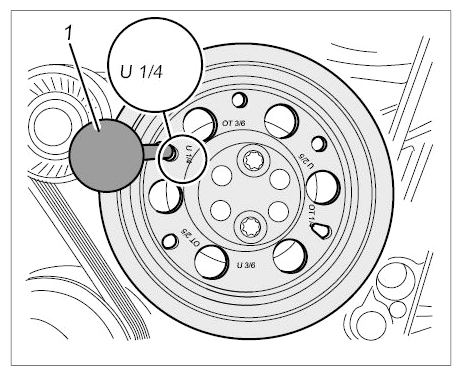

      Fig 2: Identifying U 1/4 Mark On Vibration Damper

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Preloaded or pressurized components

   • Risk of eye injuries

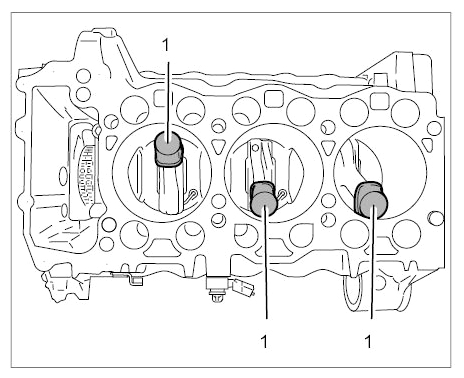

   • Risk of bruising

   → Wear personal protective gear.

   → Secure components to prevent them from falling off suddenly.

   Information

   • Special tool disassembly tool 9764 for removing piston-pin circlips must only be turned in a clockwise direction.
   • Always hold the tool firmly with one hand when using it.
   • Replace removed piston-pin circlips.

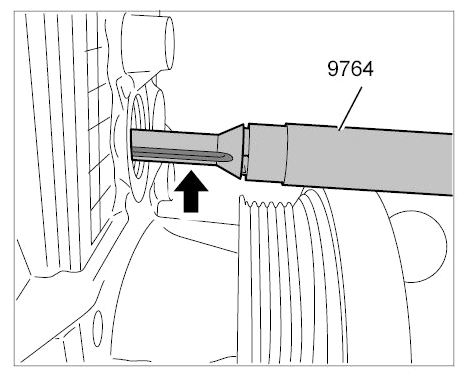

3. Slide special tool disassembly tool 9764  through the assembly bore. The groove for the hook on the circlip -arrow-  must be at 9 o'clock  position when the engine is positioned vertically.
   Fig 3: Locating Groove Position To Circlip Hook (9 O'Clock)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

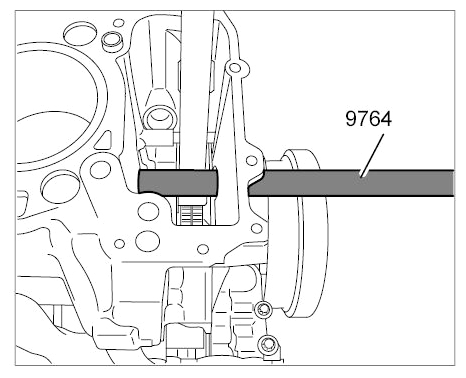

4. Disassembly tool 9764  must now be pushed into the circlip.
   Fig 4: Positioning Groove Of Special Tool 9764 In Hook On Circlip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Carefully turn the tool to the left and right. You should feel resistance from the hook.

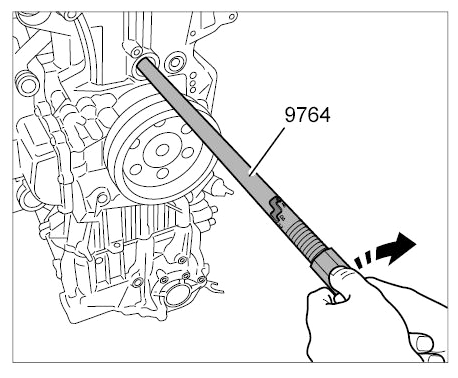

5. Tighten circlip with tool 9764. To do this, turn the hexagonal handle clockwise until you feel a certain amount of resistance.
   Fig 5: Tightening Circlip With Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Keep the hexagonal handle -1-  tight and turn the pipe -2-  clockwise until you feel a certain amount of resistance. At the same time, the cheese head bolt will move horizontally to the left from position A  in the guide groove.

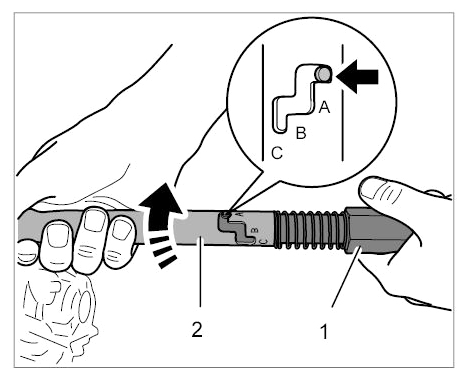

   Fig 6: Turning Pipe Clockwise (Tool 9764 At Position A)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 6.1. Hold the tool firmly at the pipe -2-  and press it slightly against the piston. Slowly turn the hexagonal handle -1-  using spring force until the cheese head bolt is at position B  .

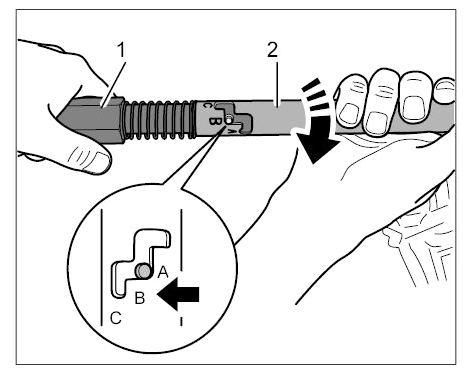

      Fig 7: Turning Hexagonal Handle (Tool 9764 At Position B)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 6.2. Hold the hexagonal handle -1-  firmly and turn the pipe -2-  clockwise until you feel a certain amount of resistance. At the same time, the cheese head bolt will move horizontally to the left from position B  in the guide groove.
      Fig 8: Turning Pipe Clockwise (Tool 9764 At Stop Ahead Of Position C)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

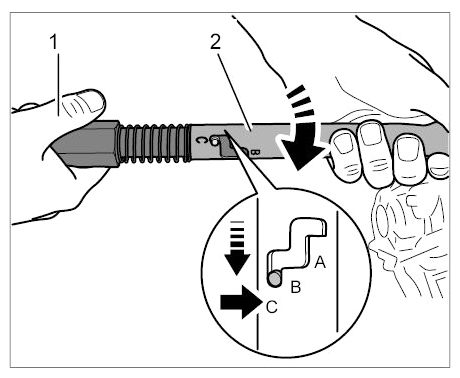

   3. 6.3. Hold the tool firmly at the pipe -2-  and press it slightly against the piston. Slowly turn the hexagonal handle -1-  using spring force until the cheese head bolt is at position C  . The circlip engages in the tool with an audible click.

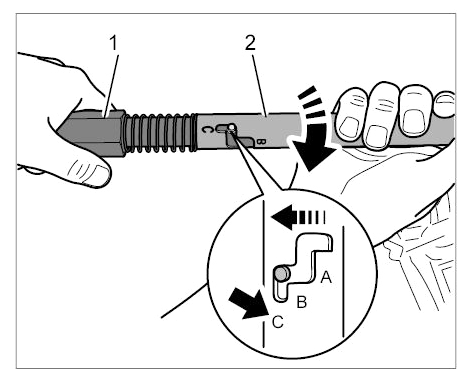

      Fig 9: Turning Hexagonal Handle (Tool 9764 At Position C)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

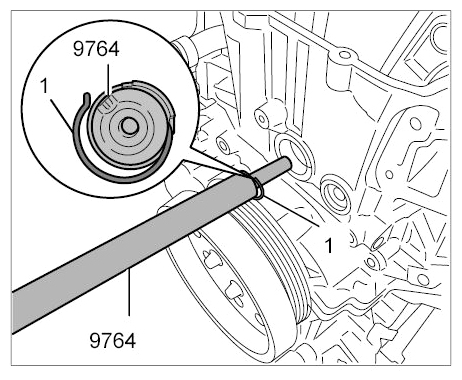

   4. 6.4. Slowly pull the tool and circlip -1-  out of the crankcase. Dispose of old circlip.
      Fig 10: Pulling Tool 9764 Out Of Crankcase

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   To remove a piston pin:

   Disassembly tool 9777  with 56-mm insert -3-  must be used.

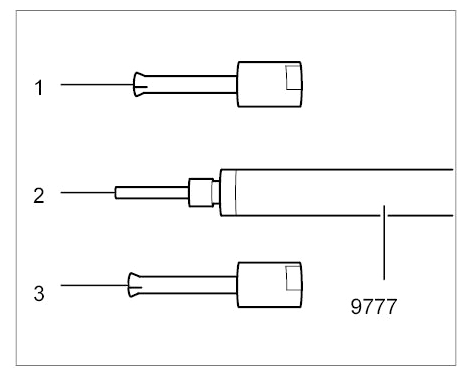

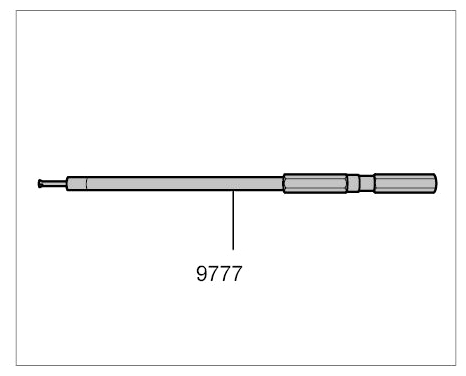

   Fig 11: Identifying Piston Pins And Tool 9777

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 53-mm insert for 2.9-litre engine (engine type MA.120)
   2. Roll pin (must be screwed in securely)
   3. 56-mm insert for 3.4 to 3.8-litre engine (engine types MA.121, MA.102, MA.101, MA.170/170 S)
      Fig 12: Identifying Roll Pin And Tool 9777

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

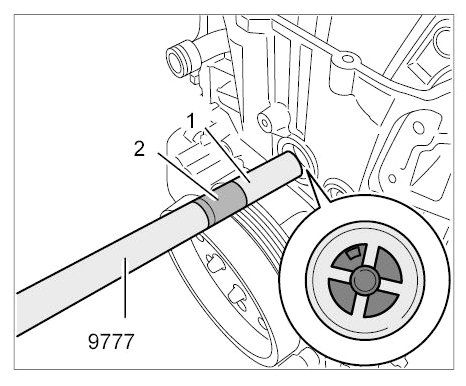

7. Disassembly tool 9777  must be pushed as far as it will go into the piston pin.
   1. 7.1. Hold the tool firmly at the hexagon -1-  and turn the hexagon -2-  anti-clockwise as far as it will go.

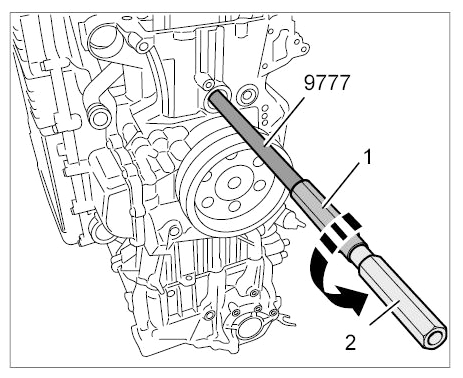

      Fig 13: Sliding Tool 9777 Into Piston Pin

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 7.2. Pull out piston pin -1-  . Inset shows the tensioned piston pin.
      Fig 14: Removing Piston Pin

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

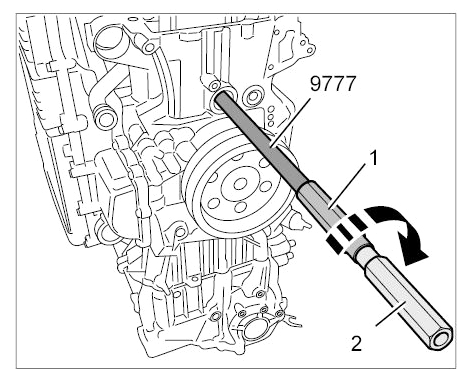

   3. 7.3. To loosen the piston pin, turn the rear hexagonal handle -2-  clockwise until the pin can be removed.
      Fig 15: Loosening Tool 9777 On Piston Pin

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   To remove pistons:

8. Assembly aid 9783  must be inserted into the cylinder bore from the oil pan side. Then press out the piston (by tapping lightly on the handle with the ball of your hand).
   1. 8.1. Assign the correct piston pin to the piston immediately.
   2. 8.2. Fit assembly aid 9795 -1-  (rubber sleeve) on the connecting rod to protect the cylinder liner.
      Fig 16: Identifying Protective Sleeves 9795 To Connecting Rods (1-3)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

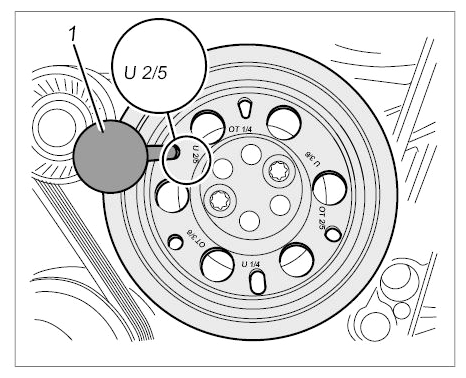

9. Turn the crankshaft to the bottom dead center position U 2/5 marking  at the vibration damper and lock at this position using a locating pin (tool 9595/1) -1-  .
   Fig 17: Identifying U 2/5 Mark On Vibration Damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 9.1. Repeat steps  3 to  8 for removing piston 2.
10. Turn the crankshaft to the bottom dead center position U 3/6 marking  at the vibration damper and lock at this position using a locating pin (tool 9595/1) -1-  .

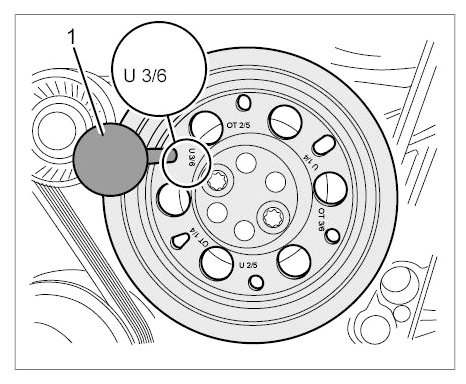

    Fig 18: Identifying U 3/6 Mark On Vibration Damper

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10.1. Repeat steps  3 to  8 for removing piston 3.
11. Check piston for signs of wear.

    → 1310IN PISTON WEAR, WEIGHT GROUPS AND IDENTIFICATION MARKINGS .
