Subsequent Work

Install engine carrier.
→ 103019 REMOVING AND INSTALLING ENGINE CARRIER - section on "Installing"
Install front silencer.
→ 262519 REMOVING AND INSTALLING FRONT SILENCER - section on "Installing"
Install number plate and retainer plate.
Install the generator.
Fit the generator and tighten M8 external Torx screws (E12) -1 and 2- .

→ 272219 REMOVING AND INSTALLING GENERATOR - section on "Installing"

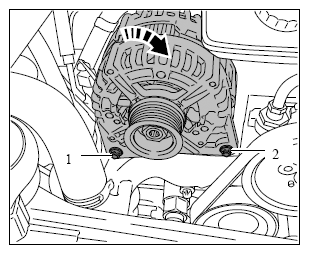

Fig 1: Identifying Generator Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install hydraulic pump.
→ 489819 REMOVING AND INSTALLING HYDRAULIC PUMP - section on "Installing"
Install air-conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR - section on "Installing"
Fit drive belt -1- .
→ 137819 REMOVING AND INSTALLING DRIVE BELT - section on "Installing"
1. 7.1. Turn the tensioner -3- clockwise at the hexagon (a/f 30) using a ring wrench -2- and fit the belt.
2. 7.2. Allow the tensioner to slide back to its initial position.

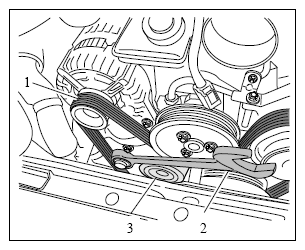

Fig 2: Fitting Drive Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install (center) intake-air distributor.
→ 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - TURBO - section on "Installing"
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - TURBO - section on "Installing"
Fill in coolant.
→ 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING) - section on "Filling"
Let the engine run until warm and visually check for leaks.
Remove protective covers from the vehicle.
