Subsequent Work

→ 103019 REMOVING AND INSTALLING ENGINE CARRIER - section on "Installing"

→ 262519 REMOVING AND INSTALLING FRONT SILENCER - section on "Installing"

Fit the generator and tighten M8 external Torx screws (E12) -1, 2-  .

→ 272219 REMOVING AND INSTALLING GENERATOR - section on "Installing"

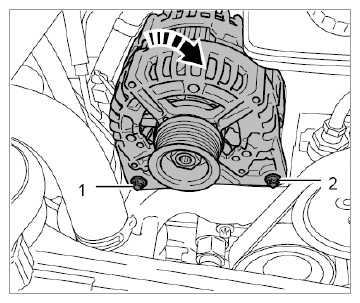

Fig 1: Installing Generator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 489819 REMOVING AND INSTALLING HYDRAULIC PUMP - section on "Installing"

→ 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR - section on "Installing"

→ 137819 REMOVING AND INSTALLING DRIVE BELT - section on "Installing"

1. 7.1. Turn the tensioner -3-  clockwise at the hexagon (a/f 30) using a ring wrench -2-  and fit the belt.
2. 7.2. Allow the tensioner to slide back to its initial position.

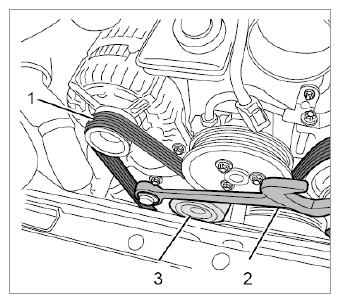

Fig 2: Installing Drive Belt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 247419 REMOVING AND INSTALLING RESONANCE TUBE - section on "Installing"

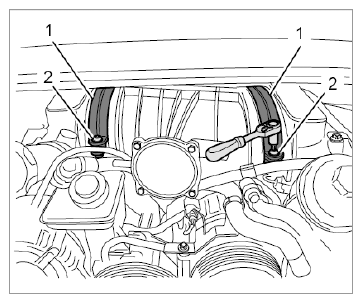

Fig 3: Securing Resonance Tube

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Installing"

→ 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)  - section on "Filling"

→ 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY - section on "Installing"

→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY - section on "Installing"
