Installing Unit Carrier (Coolant Distributor Housing)

Information

Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

Replace two seals and two O-rings on the unit carrier. Replace one seal on the coolant connection piece.

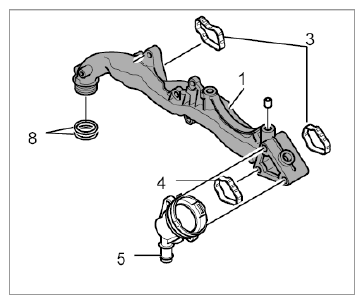

Fig 1: Identifying Unit Carrier Seals
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace molded seal on the connecting tube -3- .

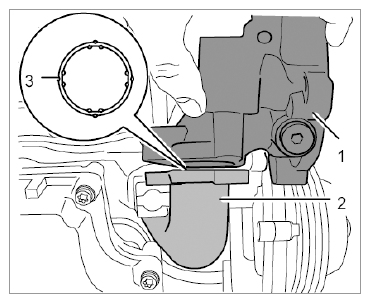

Fig 2: Identifying Thermostat Housing And Connecting Tube
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install unit carrier (coolant distributor housing).
1. 1 - External Torx screws, M8 x 70
2. 3 - Coolant connection piece
3. 4 - External Torx screw, M8 x 50
4. 5 - External Torx screw, M8 x 50
5. 6 - Unit carrier
6. 7 - Thermostat housing
1. 3.1. Insert unit carrier -6- into the thermostat housing -7- .
2. 3.2. Screw in and tighten three external Torx screws (E12, M8 x 50) -4, 5- on the unit carrier.
  → Tightening torque: 33 Nm (24 ft. lb.)
3. 3.3. Connect cable plug on the coolant temperature sensor.
4. 3.4. Install coolant connection piece.
  1. 3.4.1. Fit coolant connection piece -3- and tighten M8 x 70 Torx screws -1- .
    → Tightening torque: 33 Nm (24 ft. lb.)
  2. 3.4.2. Fit and secure spring band clamp on coolant hose.
  3. 3.4.3. Fit coolant hose on coolant connection piece -3- and secure with spring clamps on the Henn couplings. Make sure that the Henn coupling locks with an audible click.

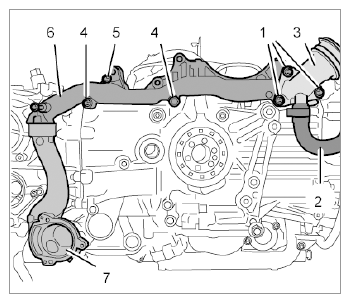

Fig 3: Identifying Coolant Distributor Housing Unit Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install bracket for the coolant pump.
1. 4.1. Replace O-rings.
  Grease new O-rings with Kluberplus Gel (Part No. 000.043.205.93).
2. 4.2. Fit bracket for coolant pump -1- .
  1. 4.2.1. Turn bracket for coolant pump -1- slightly and guide into position from the right.
  2. 4.2.2. Carefully press bracket for coolant pump into the mounting -1- .

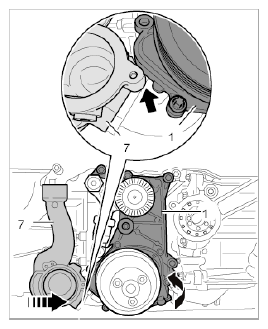

  Fig 4: Installing Coolant Connection Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Secure bracket for coolant pump -1- .
  1. 1 - Bracket for coolant pump
  2. 3 - External Torx screw, M8 x 50
  3. 4 - External Torx screw, M8 x 50
  4. 5 - External Torx screw, M6 x 20
  5. 6 - External Torx screw, M8 x 25
  1. 4.3.1. Screw in and tighten external Torx screws -3, 4, 5 and 6- .
  2. 4.3.2. Tighten one external Torx screw (E10, M6 x 20) -5- .
    → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. 4.3.3. Fit and tighten one external Torx screw (E12, M8 x 25) -6- .
    → Tightening torque: 33 Nm (24 ft. lb.) .
  4. 4.3.4. Tighten two external Torx screws (E12, M8 x 50) -3- and -4- .
    To tighten the external Torx screw -4-, the tensioner must be turned and locked.

    → Tightening torque: 33 Nm (24 ft. lb.) .

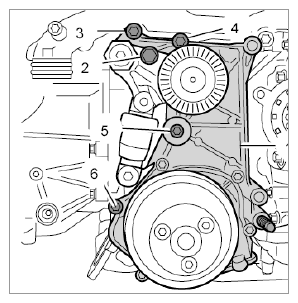

Fig 5: Identifying Coolant Pump Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install thermostat housing lid.
1. 5.1. Secure thermostat housing lid -1- .
  1. 5.1.1. Fit and tighten one external Torx screw (E10, M6 x 50) at the bottom of the thermostat housing.
    → Tightening torque: 13 Nm (9.5 ft. lb.)
  2. 5.1.2. Fit thermostat housing lid -1- and screw in and tighten three external Torx screws (E10, M6 x 50) -3- .
    → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. 5.1.3. Tighten one external Torx screw (E10, M6 x 40) -2- .
    → Tightening torque: 13 Nm (9.5 ft. lb.)
2. 5.2. Secure intake coolant pipe -5- .
  1. 5.2.1. Replace O-rings.
    Grease new O-rings with Kluberplus Gel (Part No. 000.043.205.93).
  2. 5.2.2. Press intake coolant pipe -5- into the thermostat housing.
  3. 5.2.3. Fit and tighten two external Torx screws (E10, M6 x 12) -4- on the intake coolant pipe -5- .
    → Tightening torque: 13 Nm (9.5 ft. lb.)
3. 5.3. Connect coolant hose to the thermostat housing lid -1- and secure with a spring band clamp.

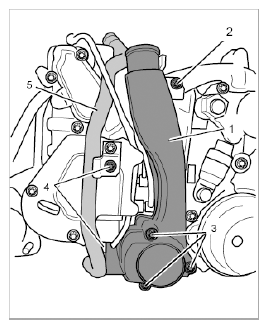

Fig 6: Identifying Intake Tube And Thermostat Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install water connection piece -3- .
1. 6.1. Fit water connection piece -3- .
2. 6.2. Screw in and tighten six external Torx screws (E10, M6 x 25) -1- on the bracket for the coolant pump -5- and crankcase.
  → Tightening torque: 13 Nm (9.5 ft. lb.)
3. 6.3. Secure the vacuum line at the water connection piece -3- .
  Screw in and tighten one external Torx screw (E10, M6 x 12) -2- .

  → Tightening torque: 13 Nm (9.5 ft. lb.)

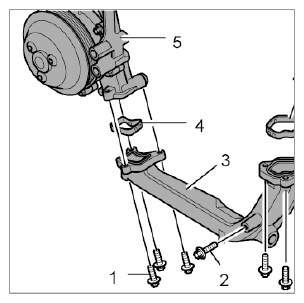

Fig 7: Installing Water Connection Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install vibration damper -1- .
→ 137519 REMOVING AND INSTALLING VIBRATION DAMPER - section on "Installing".

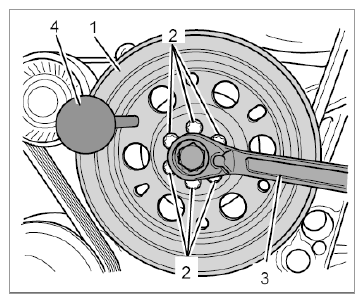

Fig 8: Installing Vibration Damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The threaded bolt on the bracket for the engine carrier must be bonded using Loctite 243 and can only be subjected to pressure after a hardening time of three hours.
Install engine carrier bracket.
1. 8.1. Fit the drive belt -1- on the vibration damper.

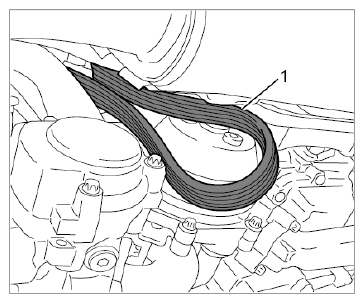

  Fig 9: Identifying Drive Belt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Fit the engine carrier bracket -3- .
3. 8.3. Apply Loctite to the threaded bolt (stud) M10 x 120.
4. 8.4. Screw in and tighten threaded bolt (stud) M10 x 120.
  Screw two nuts -1- onto the M10 x 120 threaded bolt -2- to lock it and tighten the threaded bolt -2- .

  → Tightening torque: 5 Nm (3.5 ft. lb.)

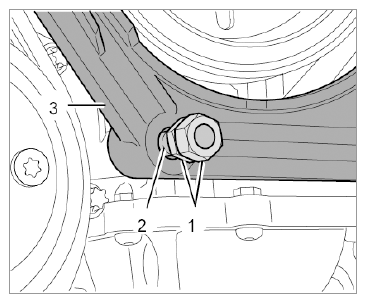

  Fig 10: Identifying Engine Carrier Bracket Threaded Bolt (Stud)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
