Removing Rear Wheel Housing Liner - Front Section

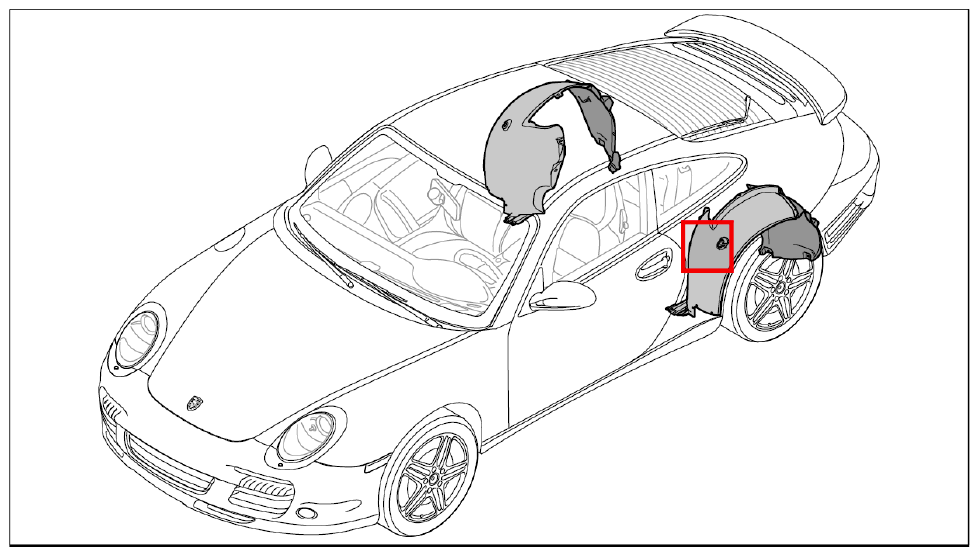

Fig 1: Identifying Installation Position Of Rear Wheel Housing Liner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1-  and fastening nuts -2-  and remove front section of wheel housing liner -A-  .

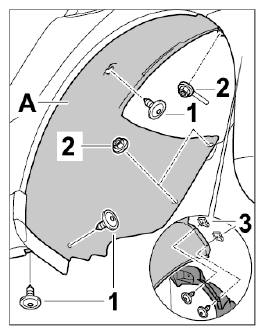

   Fig 2: Removing Rear Wheel Housing Liner - Front Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check speed nuts -3-  and replace them if necessary.
