Installing Rear Wheel Housing Liner: Notes

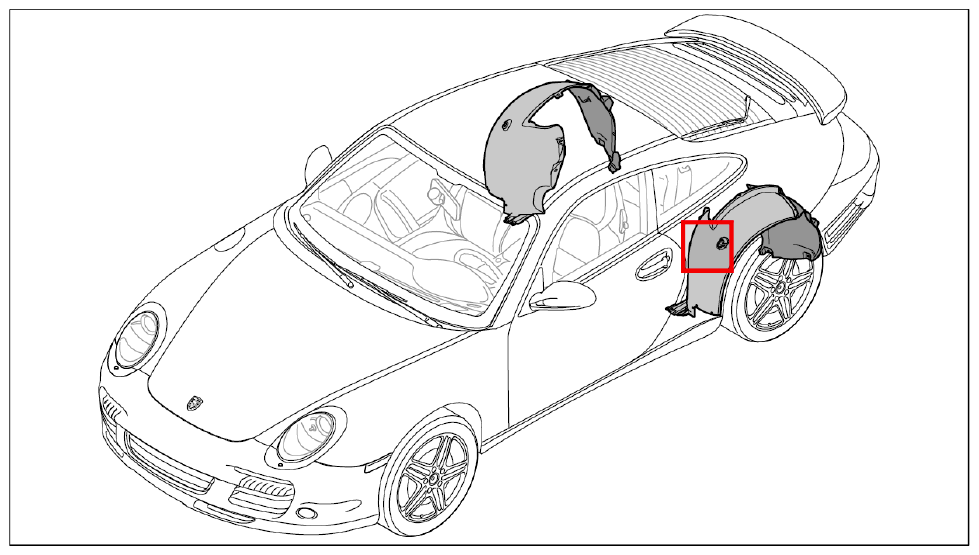

Fig 1: Identifying Installation Position Of Rear Wheel Housing Liner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Press speed nuts -3-  onto the front section of the wheel housing liner -A-  .

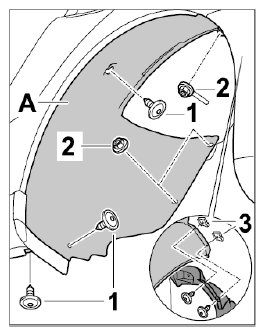

   Fig 2: Installing Rear Wheel Housing Liner - Front Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert front section of wheel housing liner -A-  and secure with fastening screws -1-  and fastening nuts -2-  . → Tightening torque: 2 Nm (1.5 ft. lb.) → Tightening torque: 2.5 Nm (2.0 ft. lb.)
