Installing Rear Wheel Housing Liner - Rear Section

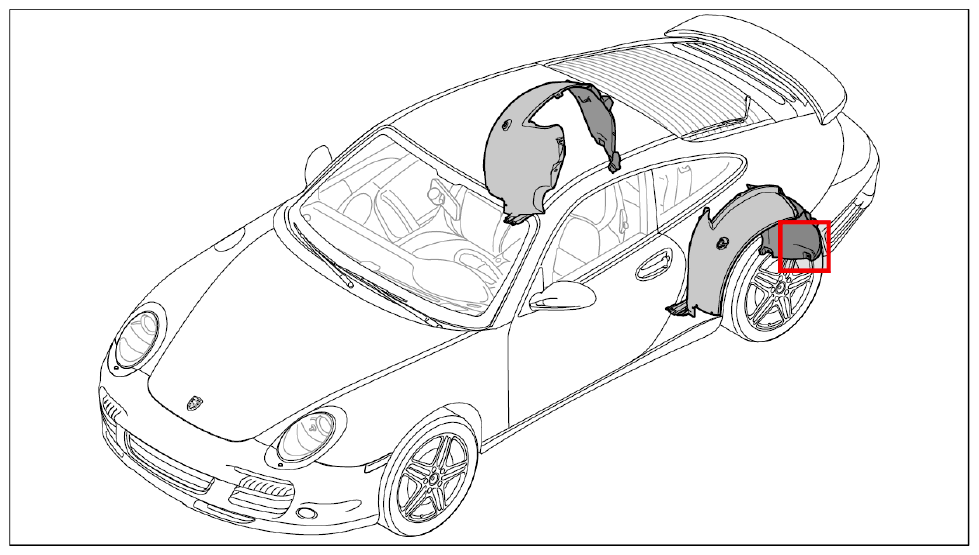

Fig 1: Identifying Installation Position Of Rear Wheel Housing Liner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Insert rear section of wheel housing liner -B-  and secure with fastening screws -1-  . → Tightening torque: 2 Nm (1.5 ft. lb.)

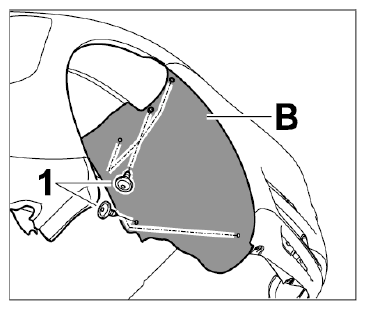

   Fig 2: Installing Rear Wheel Housing Liner - Rear Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
