Removing Outer Rear Wheel Housing

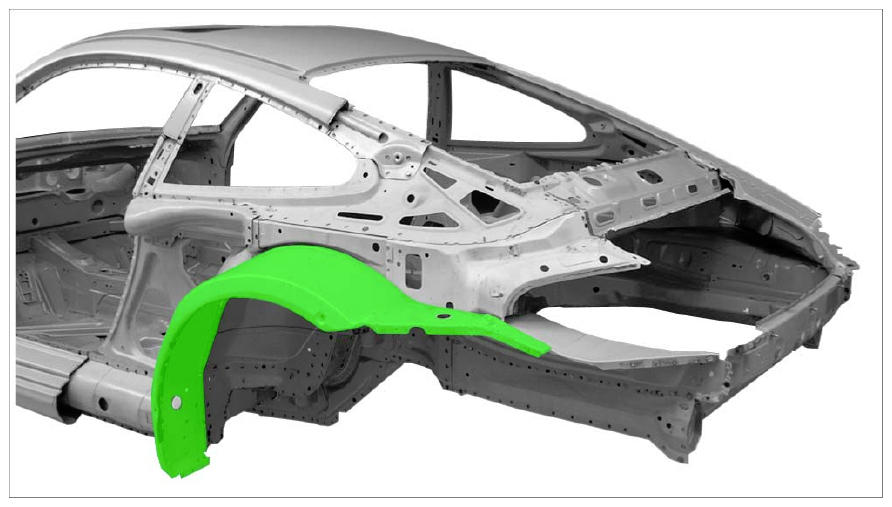

Fig 1: Rear Wheel Housing Component Location
G09823591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Removing side section
    1. 1.1. Only on the Coupe
      1. 1.1.1. Remove side section. → 535555 REPLACING SIDE SECTION  - section on "Removing"
    2. 1.2. Only on the Cabriolet
      1. 1.2.1. Remove side section. → 535555 REPLACING SIDE SECTION  - section on "Removing"
  2. Separating spotwelds

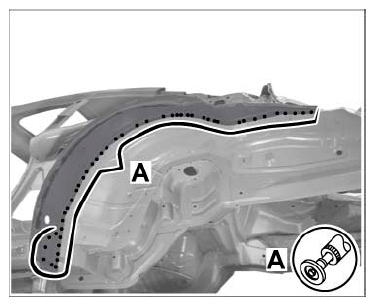

    1. 2.1. Separate spotwelds in area -A-  using a parting grinder.
      Fig 2: Identifying Spotwelds
      G09823592Courtesy of PORSCHE CARS NORTH AMERICA, INC.
