Installing Outer Rear Wheel Housing

  1. Fitting outer rear wheel housing to the body
    1. 1.1. Place the outer rear wheel housing against the body and secure to the straightening set.
    2. 1.2. Fix the outer rear wheel housing in place with tensioning clamps.
  2. Welding in outer rear wheel housing
    1. 2.1. Resistance spot-weld outer rear wheel housing in area -A-  .

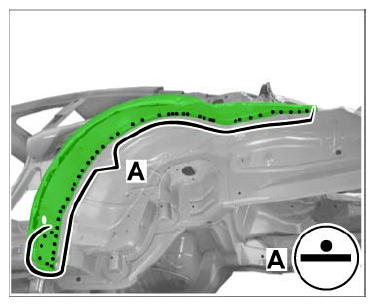

      Fig 1: Identifying Welding In Outer Rear Wheel Housing
      G09823609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Installing side section
    1. 3.1. Only on the Coupe
      1. 3.1.1. Install side section. → 535555 REPLACING SIDE SECTION  - section on "Installing"
    2. 3.2. Only on the Cabriolet
      1. 3.2.1. Install side section. → 535555 REPLACING SIDE SECTION  - section on "Installing"
