Installing Inner Rear Wheel Housing

Fitting inner rear wheel housing to the body
1. 1.1. Place the inner rear wheel housing against the body and secure to the straightening set.
2. 1.2. Fix the inner rear wheel housing in place with tensioning clamps.
Welding in inner rear wheel housing

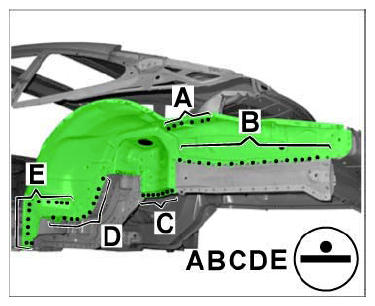

1. 2.1. Resistance spot-weld the inner rear wheel housing in areas -A, B, C, D, E- .

  Fig 1: Identifying Welding In Inner Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in inner rear wheel housing

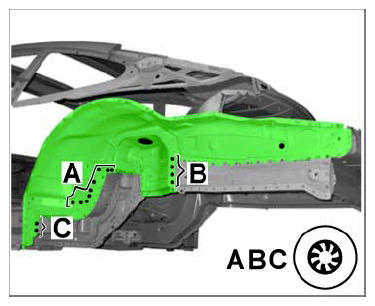

1. 3.1. Plug-weld the inner rear wheel housing in areas -A, B, C- using inert gas.

  Fig 2: Identifying Welding In Inner Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in inner rear wheel housing

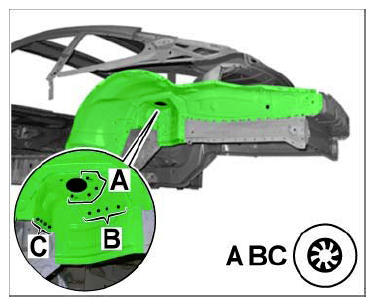

1. 4.1. Plug-weld the inner rear wheel housing in areas -A, B, C- using inert gas.

  Fig 3: Identifying Welding In Inner Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in inner rear wheel housing
1. 5.1. Apply a full weld to the inner rear wheel housing in areas -A- and -B- using inert gas.

  Fig 4: Identifying Welding In Inner Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in inner rear wheel housing

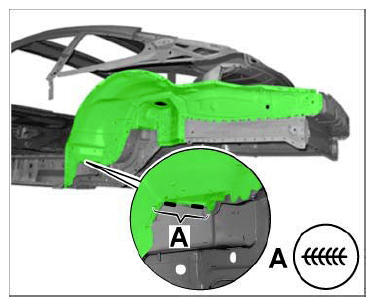

1. 6.1. Apply a full weld to the inner rear wheel housing in area -A- using inert gas.

  Fig 5: Identifying Welding In Inner Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install side reinforcement (frame for light). → 531755 SIDE REINFORCEMENT - section on "Installing"
Installing inner side section
1. 8.1. Only on the Coupe
  1. 8.1.1. Install inner side section (lower part). → 536155 REPLACING INNER SIDE SECTION - section on "Removing"
2. 8.2. Only on the Cabriolet
  1. 8.2.1. Install inner side section. → 536155 REPLACING INNER SIDE SECTION - section on "Installing"
