Removing Inner Side Section (Upper Part)

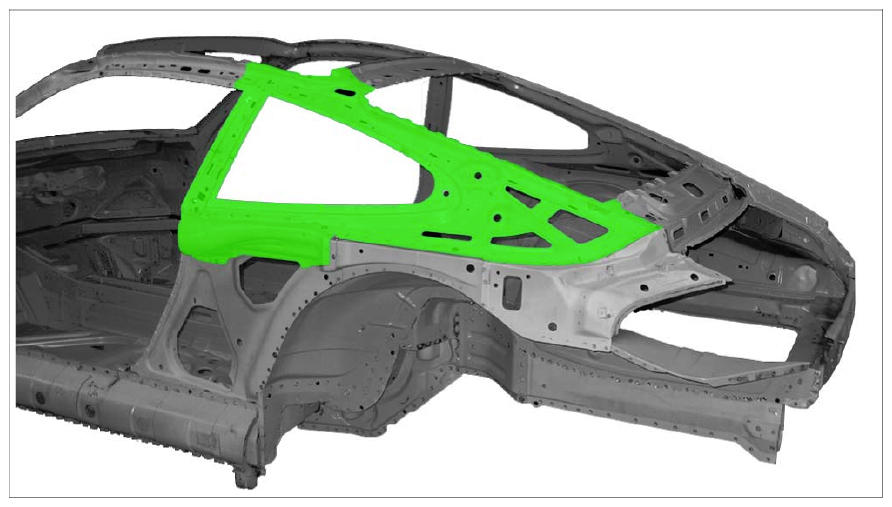

Fig 1: Identifying Installation Position Of Inner Side Section (Upper Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear center panel reinforcement. → 512155 REPLACING REAR CENTRE PANEL REINFORCEMENT - section on "Removing"
2. Replace roof pillar (pipe). → 510555 REPLACING ROOF PILLAR (PIPE) - section on "Removing"
3. Milling off spotwelds

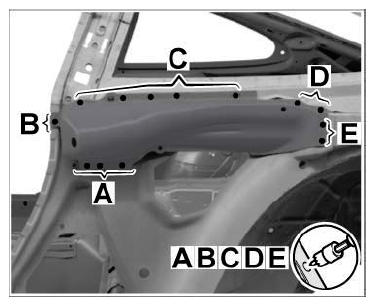

   1. 3.1. Mill off spotwelds in areas -A, B, C, E-  using a spotweld cutter.
   2. 3.2. Mill off spotwelds in area -D-  using a spotweld cutter (2 plate thicknesses).
      Fig 2: Identifying Milling Off Spotwelds Areas D Using Spotweld Cutter (2 Plate Thicknesses)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Milling off spotwelds
   1. 4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

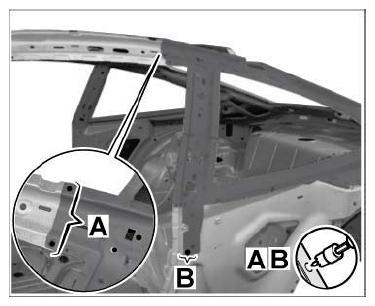

      Fig 3: Identifying Milling Off Spotwelds A And B Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Separating inert-gas welded seam
   1. 5.1. Separate inert-gas welded seam in area -A-  from the inside using a parting grinder.

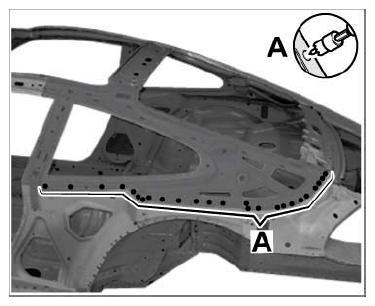

      Fig 4: Separating Inert-Gas Welded Seam

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Milling off spotwelds
   1. 6.1. Mill off spotwelds in area -A-  using a spotweld cutter.

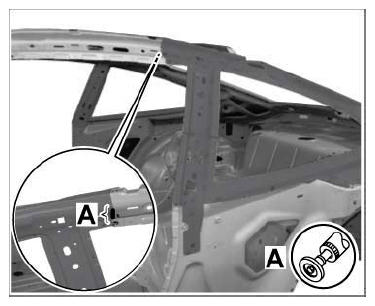

      Fig 5: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Milling off spotwelds
   1. 7.1. Mill off spotwelds in area -A-  using a spotweld cutter.

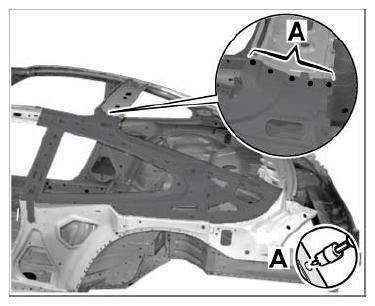

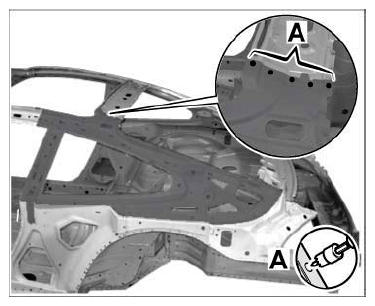

      Fig 6: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Milling off spotwelds
   1. 8.1. Mill off spotwelds in area -A-  using a spotweld cutter.

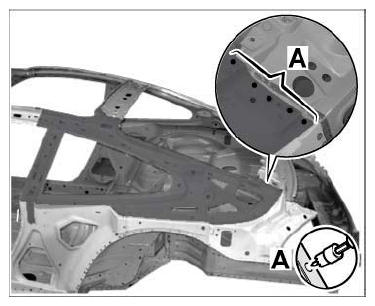

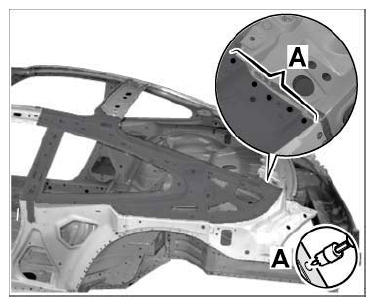

      Fig 7: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 1: Identifying Installation Position Of Inner Side Section (Upper Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear center panel reinforcement. → 512155 REPLACING REAR CENTRE PANEL REINFORCEMENT - section on "Removing"
2. Replace roof pillar (pipe). → 510555 REPLACING ROOF PILLAR (PIPE) - section on "Removing"
3. Milling off spotwelds
   1. 3.1. Mill off spotwelds in areas -A, B, C, E-  using a spotweld cutter.
   2. 3.2. Mill off spotwelds in area -D-  using a spotweld cutter (2 plate thicknesses).
      Fig 2: Identifying Milling Off Spotwelds Area D Using Spotweld Cutter (2 Plate Thicknesses)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Milling off spotwelds
   1. 4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.
      Fig 3: Identifying Milling Off Spotwelds Area A And B Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Separating inert-gas welded seam
   1. 5.1. Separate inert-gas welded seam in area -A-  from the inside using a parting grinder.
      Fig 4: Separating Inert-Gas Welded Seam

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Milling off spotwelds
   1. 6.1. Mill off spotwelds in area -A-  using a spotweld cutter.
      Fig 5: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Milling off spotwelds
   1. 7.1. Mill off spotwelds in area -A-  using a spotweld cutter.
      Fig 6: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Milling off spotwelds
   1. 8.1. Mill off spotwelds in area -A-  using a spotweld cutter.
      Fig 7: Identifying Milling Off Spotwelds Area A Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
