Removing Inner Side Section (Lower Part)

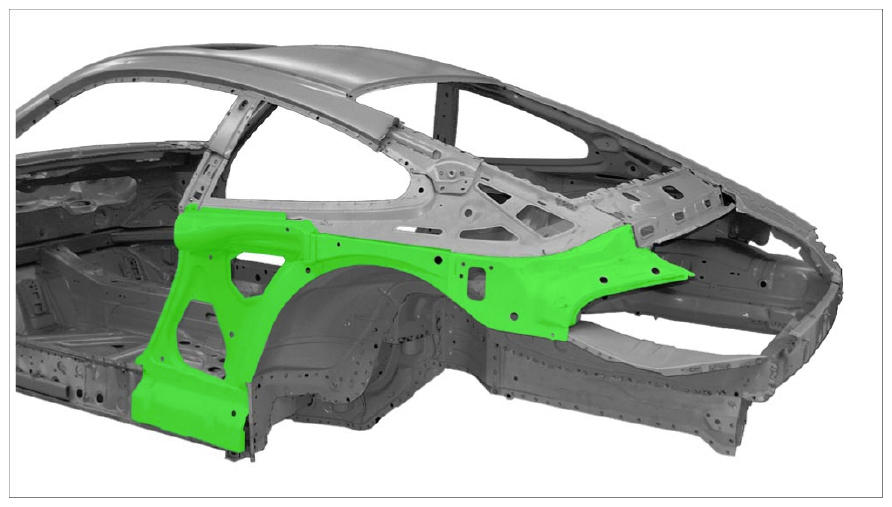

Fig 1: Inner Side Section Component Location (Lower Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove outer rear wheel housing. → 536855 REPLACING REAR WHEEL HOUSING  - section on "Removing"
2. Remove center side member. → 514855 REPLACING CENTRE SIDE MEMBER - section on "Removing"

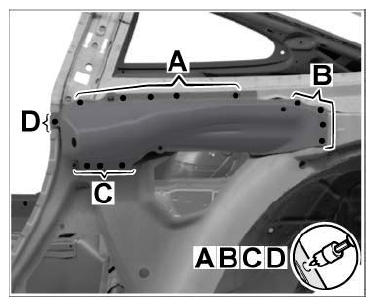

3. Milling off spotwelds

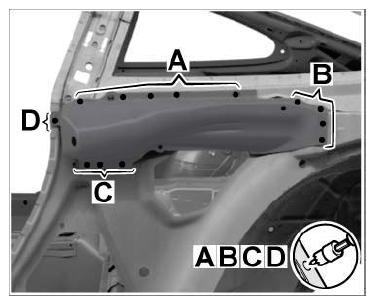

   1. 3.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.
      Fig 2: Identifying Milling Off Spotwelds Areas A, B, C, D Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

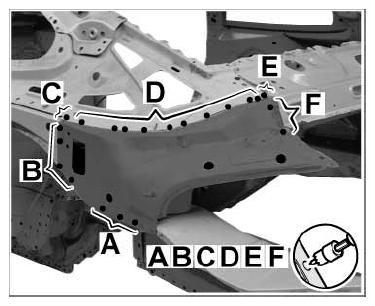

4. Milling off spotwelds

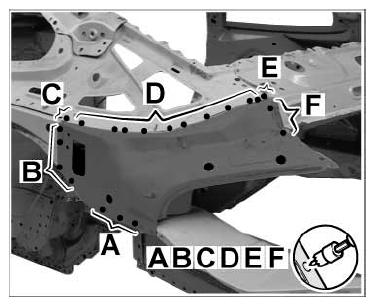

   1. 4.1. Mill off spotwelds in areas -A, B, D, F-  using a spotweld cutter.
   2. 4.2. Mill off spotwelds in areas -C, E-  using a spotweld cutter (2 plate thicknesses).
      Fig 3: Identifying Milling Off Spotwelds Areas C, E Using Spotweld Cutter (2 Plate Thicknesses)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

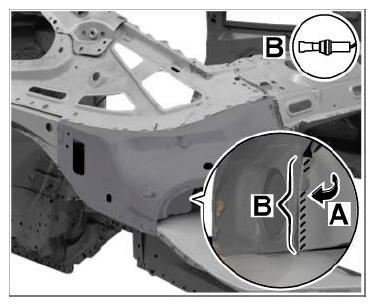

5. Loosening bonded joint
   1. 5.1. Bend up sheetmetal bracket -Arrow A-  .
   2. 5.2. Heat up bonded joint in area -B-  using a Leister Elektron Hot-Air Gun   .
      Fig 4: Loosening Bonded Joint

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

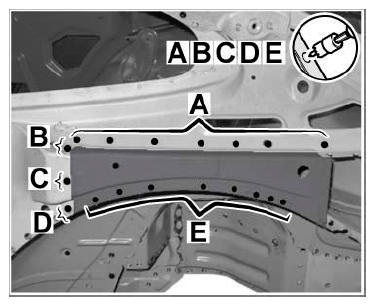

6. Milling off spotwelds
   1. 6.1. Mill off spotwelds in areas -A, C, E-  using a spotweld cutter.
   2. 6.2. Mill off spotwelds in areas -B-  and -D-  using a spotweld cutter (2 plate thicknesses).
      Fig 5: Identifying Milling Off Spotwelds Areas B And D Using Spotweld Cutter (2 Plate Thicknesses)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

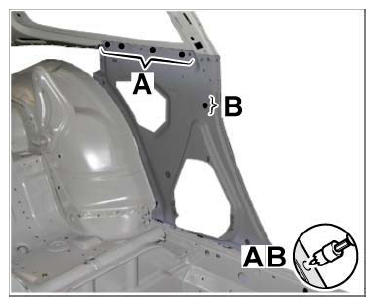

7. Milling off spotwelds
   1. 7.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.
      Fig 6: Identifying Milling Off Spotwelds Areas A And B Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

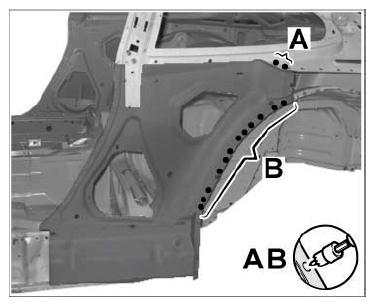

8. Milling off spotwelds
   1. 8.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.
      Fig 7: Identifying Milling Off Spotwelds Areas A And B Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

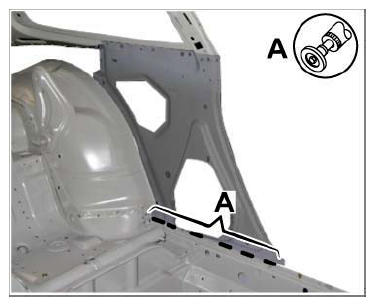

9. Separating inert-gas welded seams
   1. 9.1. Separate inert-gas welded seams in area -A-  using a parting grinder.
      Fig 8: Separating Inert-Gas Welded Seams

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
