Preparing Connection Areas Of The Body For Installing Inner Side Sections (Lower Parts)

  1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare.
    Fig 1: Cleaning Welding Areas
    G09823475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Coating spot-weld flange areas with zinc powder paint
    1. 2.1. Coat all spot-weld flange areas with zinc powder paint.


  1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

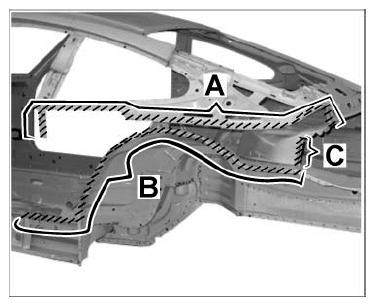

    Fig 1: Cleaning Welding Areas
    G09823523Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Coating spot-weld flange areas with zinc powder paint
    1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
