Installing Side Section

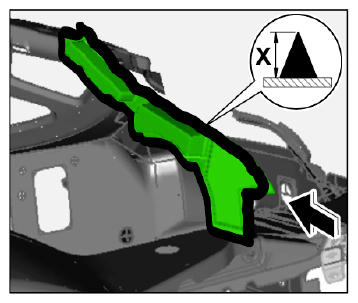

1. 1.1. Apply a triangular bead of body sealant Y  --dimension "X" = approx. 12 mm high  - on all sides of the seal. Apply seal to the prepared holes on the inside of the side section, position the pins of the seal and press into place.
   Fig 1: Identifying Seal Fitting Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

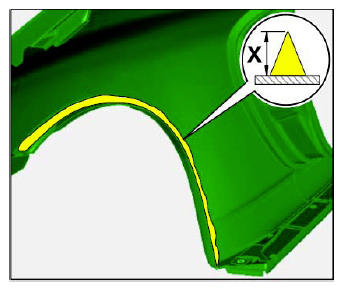

1. 2.1. Apply the adhesive as a triangular bead - dimension "X" = approx. 8 mm - on the inside of the side section, along the wheel arch and up to the start of the sill.
   Fig 2: Identifying Adhesive Applying Area On Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

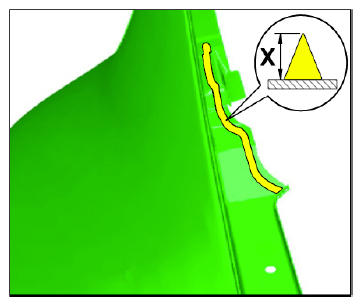

2. 2.2. Apply the adhesive material (replacement part: Klebt und Dichtet from Wurth) as a triangular bead - dimension "X" approx. 4 mm. - on the area of the side section at the transition to the rear center section.
   Fig 3: Identifying Adhesive Applying Area On Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Weld in the new part within 30 minutes.

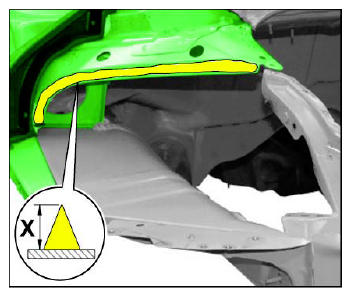

1. 3.1. Apply a triangular bead of adhesive (Teromix-6700) - dimension "X" = approx. 10 mm high - on the connection between the light housing and the inner side section. The light housing must be flush with the inner side section.
   Fig 4: Identifying Adhesive Applying Area On Inside Of Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Fix the side section at the rear with tensioning clamps.
2. 4.2. Tack-weld the side section at the rear.

   Information

   Once the spare parts have been fixed in place, repair spotwelds must be placed on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer. Welding procedures other than resistance spot-welding are not permitted since the thermal effect would destroy the bonded joint.

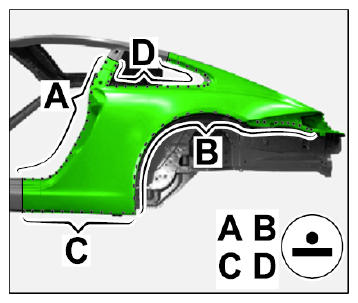

3. 4.3. Spot weld areas A, B, C, D  of the side section.
   Fig 5: Identifying Welding Area In Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

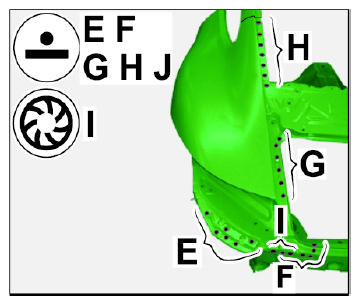

1. 5.1. Spot weld areas E, F, G, H  of the side section.
2. 5.2. Plug-weld side section in area I  under shielding gas.
   Fig 6: Identifying Welding Areas In Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

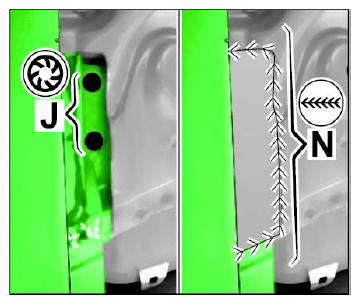

1. 6.1. Plug-weld side section in area J  under shielding gas.
2. 6.2. Weld viewing window N  of rear center section reinforcement with a continuous weld under shielding gas.
   Fig 7: Identifying Welding Areas In Viewing Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

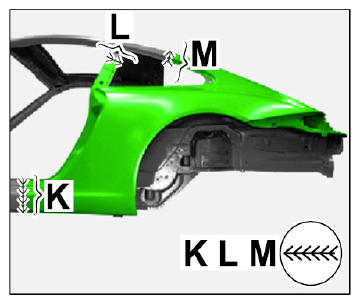

1. 7.1. Weld joints K, L, M  (lower side member, B-pillar, C-pillar) with a continuous weld under shielding gas.
   Fig 8: Identifying Welding Joints Under Shielding Gas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
