Preparing Connection Areas Of The Body For Installing The Side Section

  1. Clean the body connection flanges of undersealing, adhesive residue and paint in the marked areas using a hot-air gun or rotary brush. Grind the connection flanges until bare.

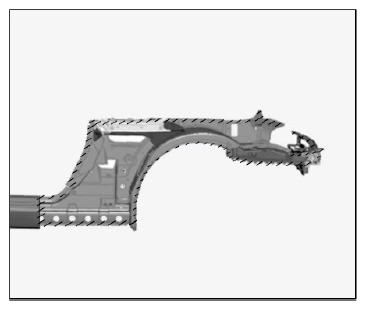

    Fig 1: Preparing Connection Areas Of Body For Installing Side Members
    G09823403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
