Removing Rear Side Member

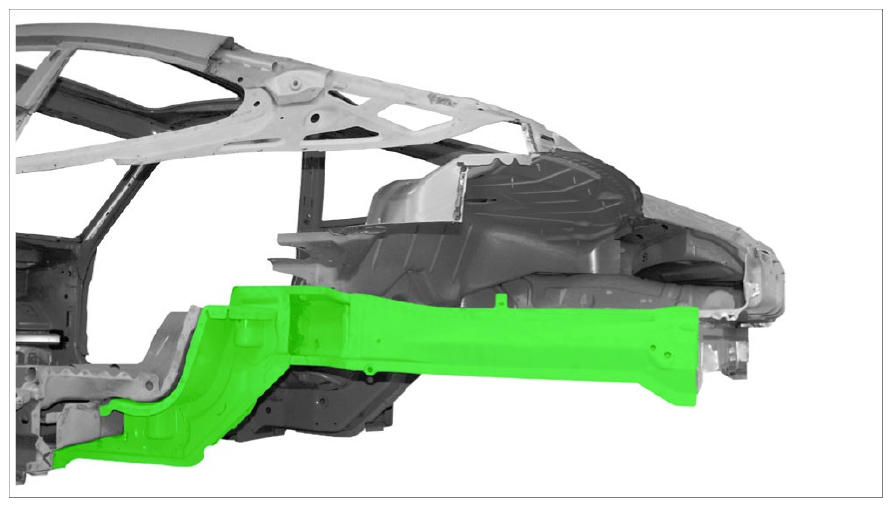

Fig 1: Rear Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove inner rear wheel housing. → 536855 REPLACING REAR WHEEL HOUSING - section on "Removing"

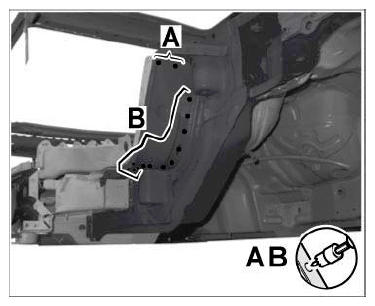

Separating inert-gas welded seams
1. 2.1. Separate inert-gas welded seams in areas -A- and -B- using a parting grinder.

  Fig 2: Separating Inert-Gas Welded Seams
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

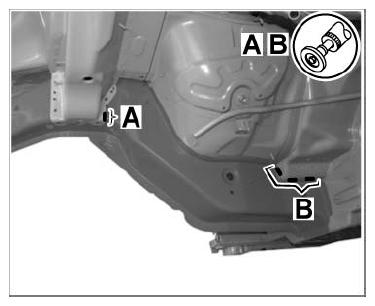

Milling off spotwelds
1. 3.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter.

  Fig 3: Identifying Milling Off Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

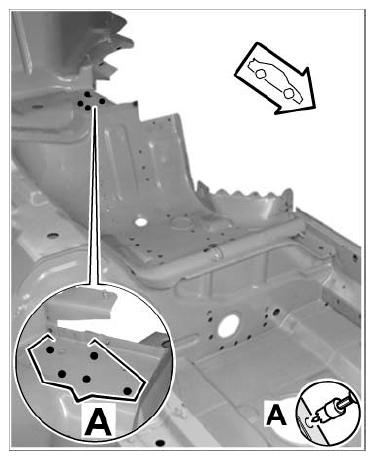

Milling off spotwelds
1. 4.1. Mill off spotwelds in area -A- using a spotweld cutter.

  Fig 4: Milling Off Spotwelds Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

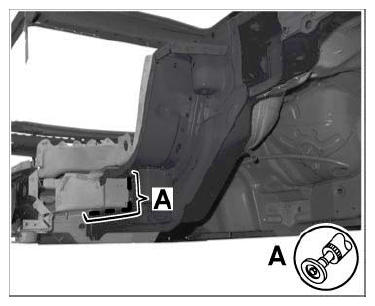

Separating inert-gas welded seams
1. 5.1. Separate inert-gas welded seams in area -A- using a parting grinder.

  Fig 5: Separating Inert-Gas Welded Seams
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

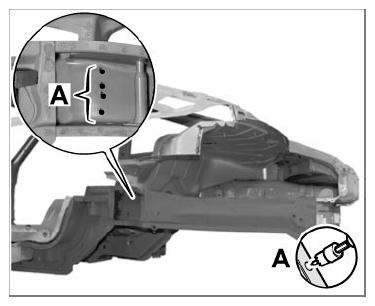

Milling off spotwelds
1. 6.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

  Fig 6: Milling Off Spotwelds Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

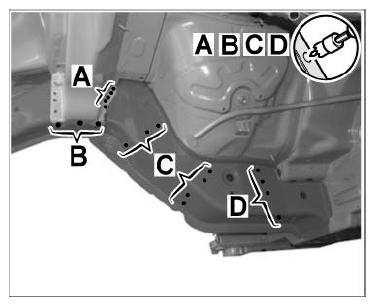

Milling off spotwelds
1. 7.1. Mill off spotwelds in area -A- using a spotweld cutter.

  Fig 7: Milling Off Spotwelds Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

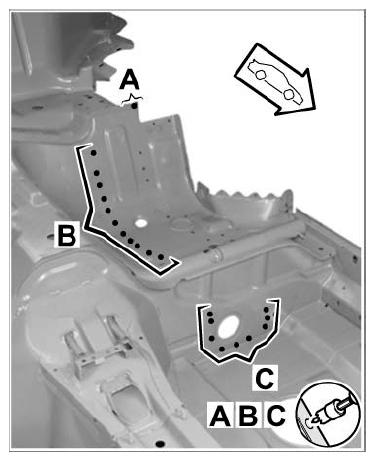

Milling off spotwelds
1. 8.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter.

  Fig 8: Milling Off Spotwelds Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
