Removing Rear Closing Panel

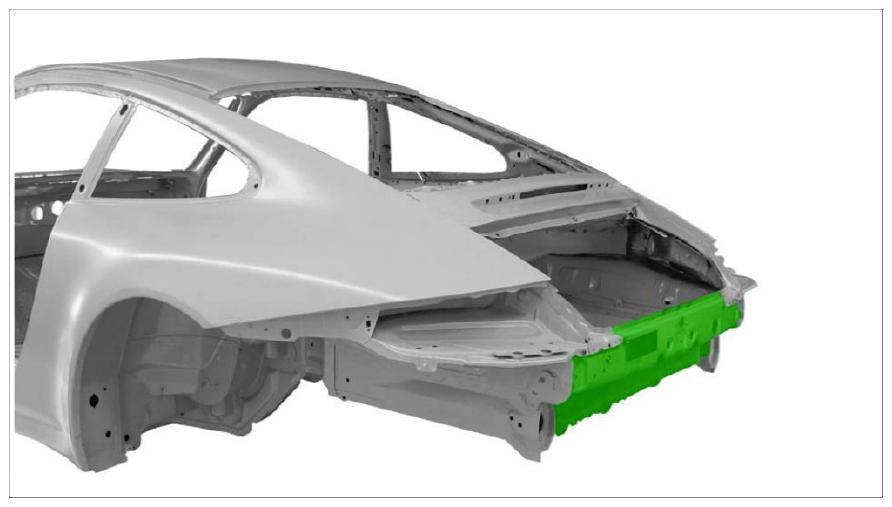

Fig 1: Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mill off spotwelds
1. 1.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

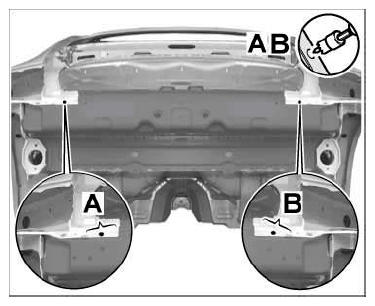

  Fig 2: Identifying Milling Off Spotwelds In Areas Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off spotwelds
1. 2.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter (2 plate thicknesses).

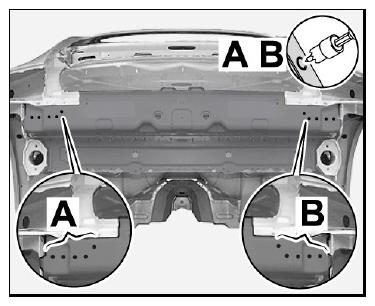

  Fig 3: Identifying Milling Off Spotwelds In Areas Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate spotwelds
1. 3.1. Separate spotwelds in areas -A- and -B- using a parting grinder.

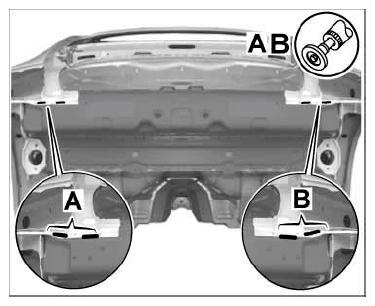

  Fig 4: Separating Spotwelds In Areas Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate inert-gas welded seams
1. 4.1. Separate inert-gas welded seams in areas -A- and -B- using a parting grinder.

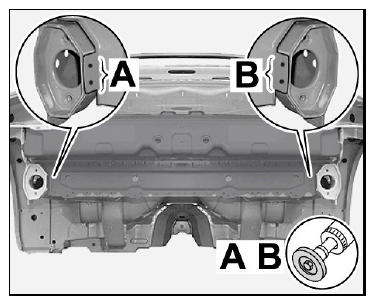

  Fig 5: Separating Inert-Gas Welded Seams Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate spotwelds at the right
1. 5.1. Separate spotwelds at the right in area -A- using a parting grinder.

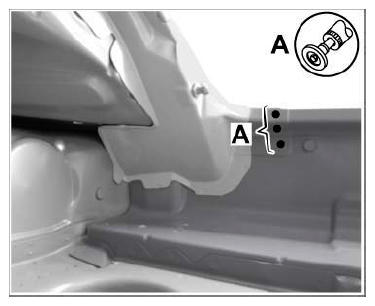

  Fig 6: Separating Spotwelds At Left In Area Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate spotwelds at the left
1. 6.1. Separate spotwelds at the left in area -A- using a parting grinder.

  Fig 7: Separating Spotwelds At Left In Area Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off and separate spotwelds
1. 7.1. Mill off spotwelds in areas -A- using a spotweld cutter (2 plate thicknesses).
2. 7.2. Separate spotwelds in areas -B- and -C- using a parting grinder.

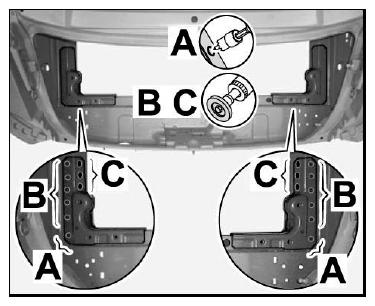

  Fig 8: Milling Off Spotwelds In Areas Using Spotweld Cutter (2 Plate Thicknesses)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate inert-gas welded seams
1. 8.1. Mill off spotwelds in areas -A- using a spotweld cutter (2 plate thicknesses).
2. 8.2. Separate spotwelds in areas -B- using a parting grinder.
3. 8.3. Separate inert-gas welded seams in areas -C- using a parting grinder.

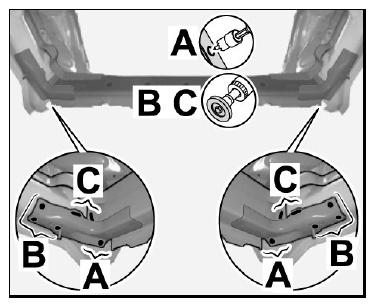

  Fig 9: Separating Inert-Gas Welded Seams Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
