Removing Roof Pillar (Pipe)

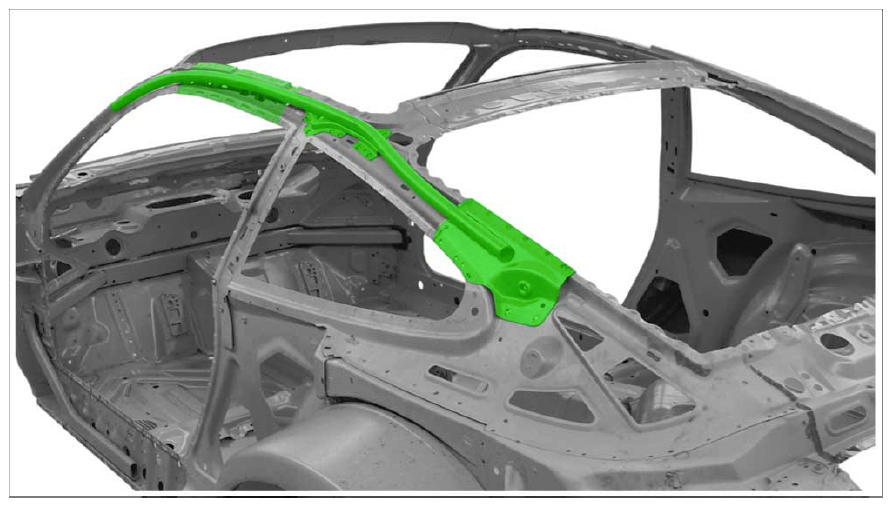

Fig 1: Roof Pillar Component Location (Pipe)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove hinge pillar reinforcement. → 516255 REPLACING HINGE PILLAR REINFORCEMENT - section on "Removing"
Remove side panel. → 535555 REPLACING SIDE PANEL - section on "Removing"
Cutting the spotwelds

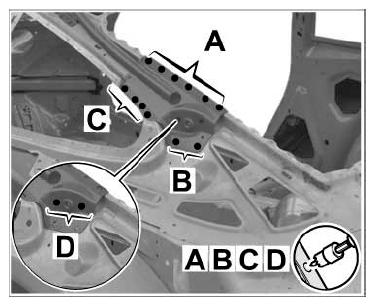

1. 3.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter.

  Fig 2: Cutting Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting the spotwelds

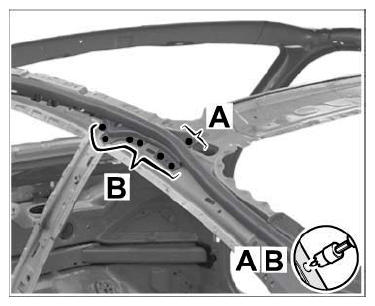

1. 4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

  Fig 3: Cutting Spotwelds
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
