Gap dimensions of tailpipe

→ Observe exact gap dimensions.

→ After the test drive, check the gap dimensions again and re-adjust if necessary.

1. Check gap dimensions from tailpipes -1-  to rear apron -2-  and replace tailpipes if necessary. → Installing tailpipe cover  .

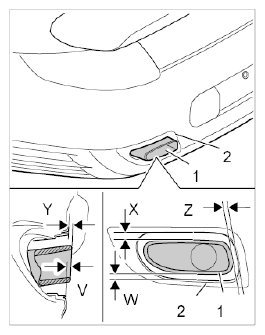

   Fig 1: Identifying Gap Dimensions Of Tailpipes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   → Gap dimension: 19.3 mm

   → Gap dimension X: 21.2 mm

   → Gap dimension Y: 24.3 mm

   → Gap dimension Y: 11.7 mm

   → Gap dimension Y: 13.5 mm
