Preliminary work

  1. Remove front bumper. → Removing front bumper
  2. Remove exhaust air duct.

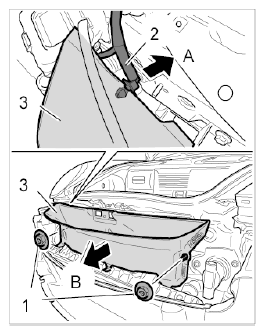

    Fig 1: Removing Exhaust Air Duct
    G09824754Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew fastening nuts -1-  .
    2. 2.2. Unclip wire harness -2-  at the exhaust air duct -3-  (-arrow A-  ).
    3. 2.3. Remove exhaust air duct -3-  (-arrow B-  ).

      Information

      • Only for USA/Canada vehicles.
  3. Remove servo motor for emergency release. → Removing servo motor for emergency release .
